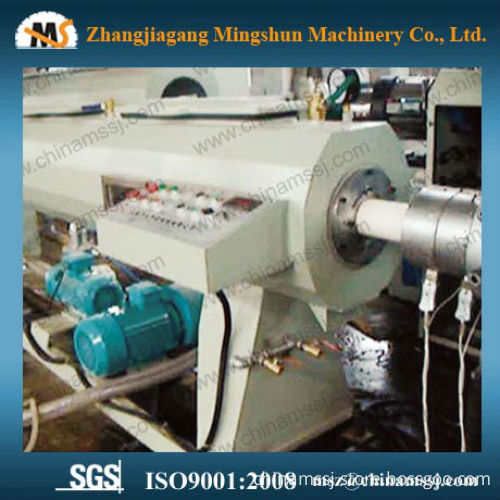

competitive price for plastic pvc water supply pipe making machine

Product Description competitive price for plastic pvc water supply pipe making machine
  The advantages of water supply pipe machine:  1) The conical double screws are with the newest structure and variable pitch improve the output by over 30%.
 2) The hardened gear surface of the gearbox guarantees the heavy duty load and long service life.  3) Twin and multi-track system, and track can be adjusted for different sizes of pipes ranging from 20mm to 630mm  4) Automatic Cutting unit can be used according to your specific requirements.
 The working process of water supply pipe machine: Raw material+additive → mixing → feeding → conical double screw extruder → mould →  vacuum formin  tank →  haul-off unit → automatic cutting machine → stacker Auxiliary equipments: mixer, printer, crusher, pulverizer, belling machine, air compressor, chiller, etc.

Pipe diameter (mm)	16-40	16-63	16-110	50-160	75-250	110-315	200-450	315-630
Output (kg/h)	80-140	180-250	80-140	180-250	300-450	300-450	500-700	500-700
Production rate (m/min)	1-15	1-10	1-8	0.5-5	0.4-4	0.3-3	0.2-2	0.1-1
Twin Extruder model	51/105	65/132	51/105	65/132	80/156	80/156	92/188	92/188
Installed power (KW)	60	90	70	110	140	180	200	240
Center height (mm)	1000	1000	1000	1000	1100	1100	1200	1200
Installation area (m)	22x2.5x3	24x2.5x3	24x2.5x3	24x2.5x3	28x2.5x3	32x3x3	36x3x3	40x3.5x3
Worker	2	2	2	2	2	2	2	2-3

It is only for your reference. Detailed specification depends on pipe diameter, wall thickness and your special requirements. Packaging & Shipping Main parts of pvc water supply pipe machine will be covered by plastic film. Then be placed on wooden pallets. Next be fixed in containers. They are transported by sea or by train. Our Services 1) We recommend of machine and auxiliary equipments and relevant budgeting, human resources allocation and budgeting. Some production lines have got test reports by SGS company. 2) We would like to answer any inquiry within 48 hours and it will be solved as soon as possible. 3) The buyer can send the worker to our company for training. 4) The Seller supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English. 5) Our engineer can be to the Buyer’s company for installation and testing the lines. Company Information Our factory is near Shanghai city. We are a gold supplier of Alibaba for 7 years. We have ISO9001:2008 and be verified by SGS. Some production lines have got test reports by SGS company.
We also manufacture plastic straight/coiled pipe machine, pipe belling machine, plastic profile/panel/ceiling machine, plastic pelletizing line, shredder, mixer, crusher and so on. Our boss is an expert over 20 years in the area. So we pay more attention to design, technology and quality. Now we are expanding market abroad. So our prices are competitive.
In last few years we have exported to Russia, Ukraine, Belarus, South Africa, Nigeria, Morocco, Zambia, Saudi Arabia, Egypt, Jordan, Pakistan, Bangladesh, Uzbekistan, Argentina, Mexico, Brazil, Uruguay, etc.  For some main parts, we usually use Siemens/ABB/Omron/ Schneider brands in order to ensure better quality.
