UPVC pipe extruder machine/ UPVC pipe machine / UPVC pipe manufacturing machine

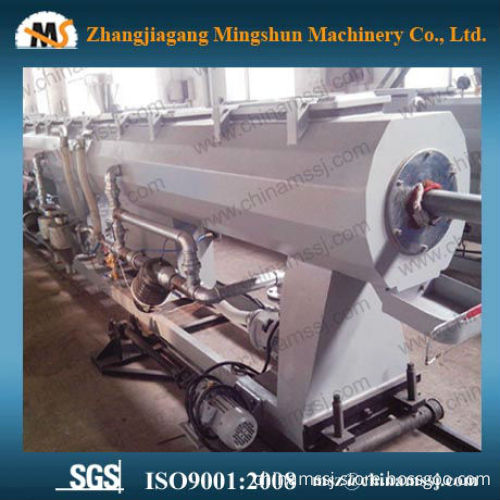

UPVC pipe extruder machin e/ UPVC pipe machine / UPVC pipe manufacturing machine   The application of UPVC pipe extruder machine: 1. Water supply and drainage pipelines in building; 2. Rainwater drainage pipelines in building; 3. Electrical wiring pipe in building; 4. Air conditioning condensate water systems.     The working process of UPVC pipe extruder machine: PVC powder → mixing → spring feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul off unit→ cutting machine → stacker   The auxiliary equipments are mixer, printer, belling machine, crusher and so on.   Main parameter of UPVC pipe extruder machine:

Model number	PVC-16/63	PVC-20/110	PVC-50/160	PVC-75/250	PVC-110/315	PVC-200/450	PVC-315/630
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm
Max output	120kg/h	120kg/h	180kg/h	300kg/h	450kg/h	650kg/h	800kg/h
Production rate	1.5-15m/min	0.8-8m/min	0.5-5m/min	0.4-4m/min	0.3-2m/min	0.1-1m/min	0.07-0.7m/min
Extruder model	SJSZ-50/105	SJSZ-50/105	SJSZ-55/110	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188	SJSZ-92/188
Installed power	45kw	45kw	55kw	75kw	105kw	160kw	205kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm
Installation area	22*2.5*2.0m	24*2.8*2.0m	24*2.8*2.0m	30*2.8*2.2m	35*3.0*2.4 m	36*3.0*2.4 m	38*3.2 *2.8m

      Now UPVC pipe extruder machine is one of our leading products.  We have mature technology in the field. If you are interested in them, please feel free to contact us.
