1.0 ton Automatic electric truck tail board

      Product Description   Why choose us?   12 years manufacturing experience in hydraulic lifting industry. Do you know what is it makes us walk such far?   1.Competitive price We are the manufacture,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much  cheaper price which will directly effects the price of the lifting machines.  2.Reliable quality a.Material used.The thickness of the rectangular tube is 5mm which make the whole machine more steady and  durable. b.Oil Paint. The oil paint we used meet international standard which looks more bright and smoothly, also not easy to remove or come off.  3.Good service We assure you reply the email within 24 hours. We assure you 12 mouth quality warranty time.  4.Keeping innovations  We welcome every recommendation and opinion from you and make progress together with you. We can design a new machine as your requirements,until to your satisfaction.   Tail board Specifications

Model	SMT-WB10	SMTWB15	SMTWB20	SMTWB30
Platform size(mm)	1700*1800	1800*2000	2000*2050	2000*2400
	1800*2000	1800*2300	2000*2340
	It can be made according the width of the vehicle
Capacity(Kg)	1000	1500	2000	3000
Self weight(Kg)	320	460	540	620
Motor power(Kw)	2	2	2.5	3
Motor	DC12V-24V/100AH-160AH
Using height from the vehicle box to ground(mm)	700-1550
Average lifting speed(mm/sec)	60-80
Hydraulic oil	32#-46#Anti-wear hydraulic oil
Platform working angle	5Degrees -9Degrees

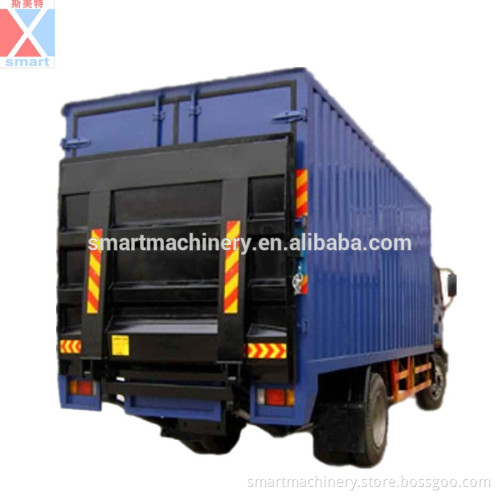

    Tail board pictures              Note:For enquiry the special tail board,pls provide the accurate data of B,D,E,H,L,so we can send the plan which is suitable for you.     Company Information Certificate         Our Services Warranty   We provide 1 year after the date of Bill of Lading to the Tail board.   During the warranty period we guarantee to supply free replacement parts to any defective of our product  which proved to be defective in material or workmanship when under proper operation during warranty period;
