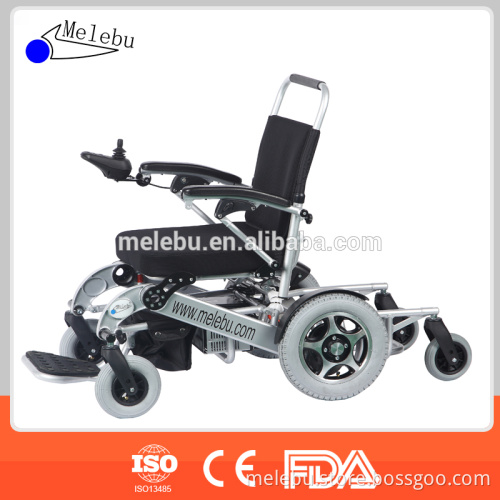

brushless electric wheelchair motor

Brushless electric wheelchair motor Product Description

Model number	A08L
Maximum weight capacity	160 KG
Maximum speed	7.2 KM/H
Ground clearance	6.35 CM
Turning radius	29.9”/76cm
Overall length	92CM
Overall width	60.3CM
Overall height	89CM
Folding length	85CM
Folding width	75CM
Folding length	43CM
Drive wheels	12” X2”PU tire
Front wheels	8”X2” PU tire
Suspension	Spring absorber
Drive train	Two-motor,rear-wheel drive
Braking system	Intelligent braking(electronic,regenerative disc brakes)
Battery charger	Off-board,2 amp
Per charge range	Up to 6.25 miles/10km
Battery size	24V 10AH, 24V 20AH, 24V 30AH
Battery weight	3.33lbs/1.5kg
Base weight	43.3lbs/19.5kg
Seat dimensions	45.7*43 CM



Part	Warranty
Wheelchair Body	2 years
Controller+joystick	1 year
Brushless motor	2 years
Lithium battery	2 years

  Products photoes           Our Services   OEM service if customers need.   Company Information   Factory Information

	Factory Size (Sq.meters):	1,000-3,000 square meters
	Factory Location:	NO.65, Matang Road,Kunshan City,Jiangsu Province,China.
	No. of Production Lines:	5
	Number of R&D Staff:	Less than 5 People
	Number of QC Staff:	Less than 5 People

    FAQ     One trailer is $110, extra one battery is $105.   Any questions, please feel free to contact us! we are ready here to help you! looking forward to cooeprating with you!
