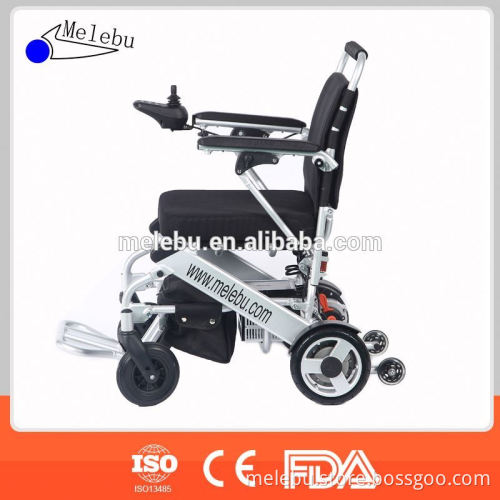

24V10AH Li-Battery Foldable Power Wheelchair CE/ISO Approved

Foldable power wheelchair Specifications

Moder number	A06
Maximum weight capacity	266lbs/120kg
Maximum speed	Up to 4.06mph/6.5kmph
Ground clearance	1.85"/4.7cm
Turing radius	29.9'/76cm
Overal Length	37.8"/96cm
Overal width	23.2"/58.9cm
Overal heigh	36.8"93.5cm
Folding length	23.2"/58.9cm
Folding width	13.4"/34cm
Folding height	27.2"/69cm
Drive wheels	9"*2" PU tire
Front wheels	7" *1-3/4" PU tire
Suspension	Spring absorber
Drive train	200W*2, Two-moter, rear-wheel drive
Branking system	Intelligent braking (electronic, regenerative disc brakes)
Standard electronics	40 amp, brushless motor controller
Battery charger	Off-board, 2 amp
Per charge range	Up tp 8.07 miles/13km
Battery size	24V 8Ah, 24V 16Ah
Battery weight	3.55lbs/1.6kg
Base weight	50 lbs/22.5kg
Seat dimensions	17" *17"/ 43cm*43cm

      Warranty

Part	Warranty
Wheelchair Body	2 years
Controller+joystick	1 year
Brushless motor	2 years
Lithium battery	2 years

  Detailed photoes           Our Services   OEM service if customers need.     Company Information   Factory Information

	Factory Size (Sq.meters):	1,000-3,000 square meters
	Factory Location:	NO.65, Matang Road,Kunshan City,Jiangsu Province,China.
	No. of Production Lines:	5
	Number of R&D Staff:	5-10 People
	Number of QC Staff:	5-10 People

      FAQ     Extra one battery is $110.   Any questions, please feel free to contact us! we are ready here to help you! looking forward to cooeprating with you!
