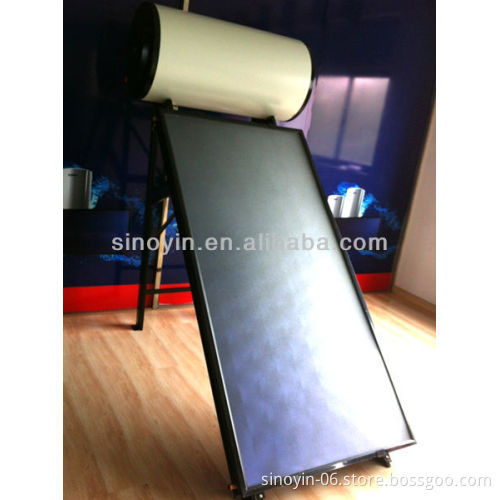

split pressure solar water heater with flat panel solar collector

Specifications 1,Germany improted blue titanium absorbers

2, Laser welding for copper and absorber

3, 25 years lifetimes,SRCC Solar Keymark

       Compact solar water heater Introduction              Advantages:        (1)European and American design style        (2)The natural circulation system of , free maintenance;         (3)Auxiliary electrical heating, with temperature controller and manual           overheat protector;           (4) The inner tank use food-grade 304 stainless steel or enamel materials,            corrosion resistance, long service life;         (5)Using high efficient flat plate collector;         (6) System uses indirect heat, suitable for various climate installation.             Specifications:

Category		P-JF2-150/1.8 0/0.70-ZFF-2. 4-01
Enamel water tank	Circulation way	Pressure-bearing  indirect cycle
	Water tank	150L
	Size	Φ555*1200mm
	Shell material	Porcelain white choi steel
	Jacketed heat exchanger area(m2)	1.2
	Max working pressure	0.6Mpa
	Jacketed max working pressure	0.3Mpa
	Auxiliary electrical heating	2.0kw
Solar collector	Model	FP-GV2.0
	Size( L x W x T )	2000 x 1000 x 80mm
	Total area	2m2x 1pcs
	Absorb plate material	Whole plate aluminum
	Heat absorption coating	Imported blue titanium/Black chromium plating
	Header tubes	red copper/ Φ22*0.6
	Row tubes	red copper / Φ8*0.6
	number of row tubes	8 pieces
	Welding	Whole plate laser welding
	Cover plate	Low iron cloth tempered glass
	Frame material	Aluminum
	Insulation	Wave fiber cotton
	Connector size	DN15 outside

  Our company has two more kinds compact solar water heater system which are 200L 300L its bracket are aluminium alloy or wearthering steel  ,its circulation tubes material are  304 stainless steel bellows (Φ 22 mm)/red copper tube (Φ19 mm)  .....                                            If you are interested in our solar water heater,plsease email with your idea                         and choose one capacity solar water heater .thanks! you can also visit our                        Global Sources shop by type our company name Sinoyin Solares Co.,Ltd                          welcome to visit our company anytime!!   My Skype is LidingLyli                              Exceed  Customer Needs                                                  Create Customer Value  !  !  !
