Flat Plate Solar Water Heating System for Villa with 200L

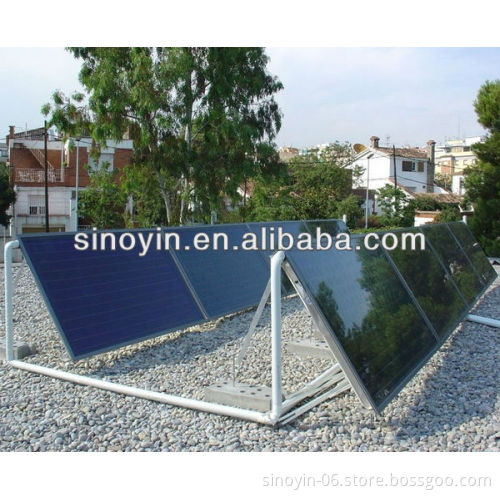

Flat Plate Solar Water Heating System for Villa,Measures 2000*1000*95mm   Model No:FP-GV-S/E(2000*1000*95mm) with 200L   System Main Configurations   1.Controlled by computer all the time   2.Imported blue titanium whole board solar collector from Germany   3.Pump station:SP116   4.Brand expansion case   5.Enamel/stainless water tank,depends on the buyer   System Characteristics   ♦ High thermal efficiency:Germany imported selective coating absorber   ♦ Presurized design,more comfortable using   ♦ Fully auto control,convenient and reliable   ♦ Antifreeze,working under -40°c   ♦ Water tank installed with solar collector separately,it can be layed anywhere.   System Design Strength   ♦ 1.Collectors installed outdoor, safe and artistic.   ♦ 2. Water tank wall-hanged,making full use of Balcony Space   ♦ 3.Various installing ways,extensive applications   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   System Configuration Table

Model No	Specifications	Collectors	Persons	Details
FP-GV-S/E (2000*1000*80mm)	150L 200L 300L 400L 500L	1 1-2 2 3 3-4	2-3 3-4 5-6 7-8 9-10	1.Controlled by computer totally 2.Imported blue titanium whole board collector 3.Brand expansion Case 4.Enamel/stainless water tank
Applications				Independent Villa

  Certifications:Solar-keymark,SRCC,CE Solar Produdcts Showing Room About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the 72% line standard,very rare in China. 4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
