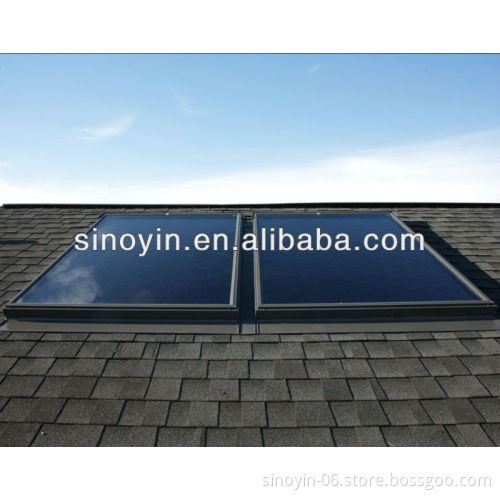

Flat Plate Solar Water Heating System for Villa,Measures 2000*1000*80mm

Flat Plate Solar Water Heating System for Villa,Measures 2000*1000*80mm   Model No:FP-GV-S/E(2000*1000*80mm)   System Characteristics:   ♦ Unique designing plan for variety requirements   ♦ Intelligent control and automatic operation   ♦ Auxiliary heating system guarantee hot water supplying for 24 hours   ♦ Stable ,constant water supply with computer cotrolled and pressurized pipeline   ♦ Fully use solar collecting area   ♦ Low cost input,great rewards   ♦ Save energy,Reduce population   ♦ Anti-shock,anti-freeze design   System Design Strength   ♦ 1.Collectors installed outdoor, safe and artistic.   ♦ 2.Water tank wall-hanged,making full use of Balcony Space   ♦ 3.Various installing ways,extensive applications   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   System Configuration Table

Model No	Specifications	Collectors	Persons	Details
FP-GV-S/E (2000*1000*95mm)	150L 200L 300L 400L 500L	1 1-2 2 3 3-4	2-3 3-4 5-6 7-8 9-10	1.Controlled by computer totally 2.Imported blue titanium whole board collector 3.Brand expansion Case 4.Enamel/stainless water tank
Applications				Independent Villa

  Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Produdcts Showing Room About Sinoyin Solares   Sinoyin Solares  is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the   72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
