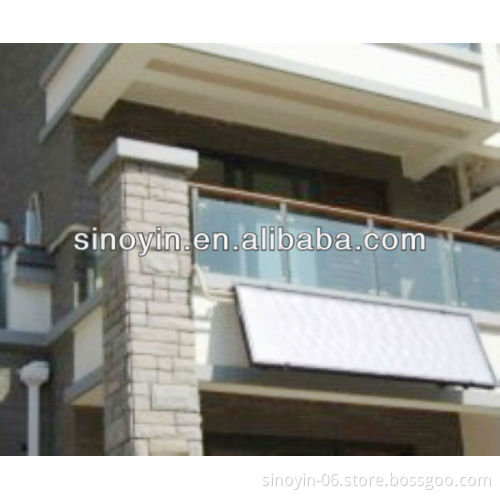

Flat Plate Solar Water Heater System for Balcony,Measures 2500*800*80mm

Flat Plate Solar Water Heater System for Balcony   Model Number: FP-GH-S/E(2500*800*80mm)   System Main Configurations   1.Controlled by computer all the time   2.Imported blue titanium whole board solar collector from Germany   3.Pump station:SP116   4.Brand expansion case   5.Enamel/stainless water tank,depends on the buyer   System Characteristics   ♦ 1.Integrated with buildings more perfectly by using flat plate solar collector   ♦ 2.More comfortable enjoymnt for split pressurized design   ♦ 3.More applicable using for high building residents   ♦ 4.Anti-shock,anti-freeze design   System Design Strength   ♦ 1.Collectors installed outdoor, safe and artistic.   ♦ 2. Water tank wall-hanged,making full use of Balcony Space   ♦ 3.Various installing ways,extensive applications.   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                             How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   System Configuration Table

Item Name	Modle Number	Capacity	Details
Flat Plate Solar Water Heater of Balcony	FP-GH-S/E (2500×800×80mm)	80L 100L 120L	1.Germany Imported Blue Titanium whole Absorber; 2.Electrical heating controlled by miro computer 3.Magnesium rod enamel /Stainless pressurized water tank
Applicatins			Villa,High Building

  Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Products Showing Room   About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the   72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
