Compact Flat Plate Solar Water Heater System, Made of SUS316 Stainless Steel Inner Tank

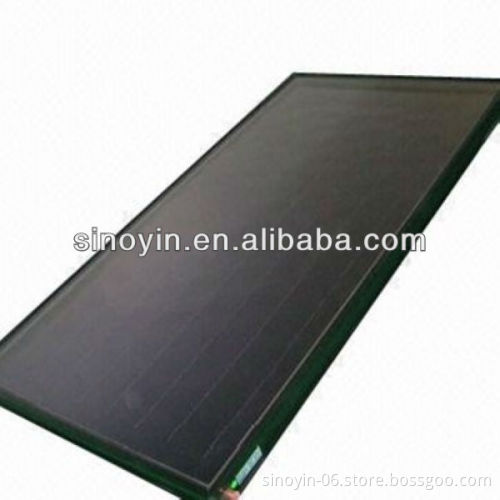

Compact Flat Plate Solar Water Heater System   Model  Number: SY-II-250L System Main Configurations   1.Controlled by computer all the time   2.Imported blue titanium whole board solar collector from Germany   3.Pump station:SP116   4.Brand expansion case   5.Enamel/stainless water tank,depends on the buyer   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   System Special Features: Tank: Inner: 1.2mm imported food grade stainless steel (SUS304-2B) Exterior shell: 0.4mm color steel plate ( PVDF) Insulation: high density polyurethane integrated foam layer with 72 to 80 hours heat preservation Bracket:Hot water output: 45 to 80gsm Material: 1.5mm galvanized steel Coating: powder coating With paint baking process Angle: 22 to 45° Suitable for slope and flat roof System Design Strength   ♦ 1.Collectors installed outdoor, safe and artistic.   ♦ 2. Water tank wall-hanged,making full use of Balcony Space   ♦ 3.Various installing ways,extensive applications   Solar System Accessories: Stainless bolts, nuts, copper connectors, circulation pipes, insulation Electrical heater with control box, anode magnesium bar, T/P valve and relief valve   Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Certifications:Solar-keymark,SRCC,CE About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly specialize   in developping and producing high quality flat plate  solor collector and solar water heating   system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.   no any welding on the  tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher    than the 72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Products Showing Room   Sinoyin Solares in the Fair
