Solar water heater manufacturer in forced circulation, CE certified

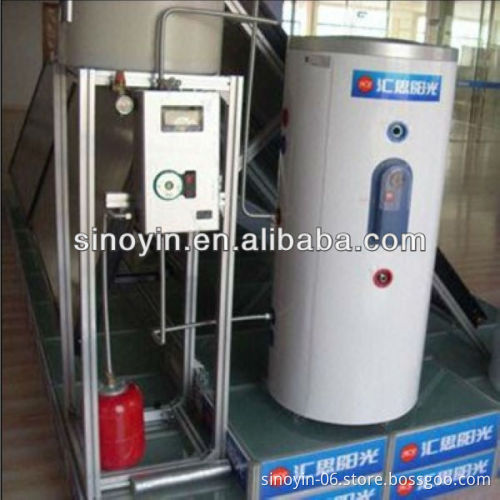

Solar water heater in forced circulation,CE certified   Model No: QZ300L   System Special Features: Flat plate solar collector installed on balcony or roof, water tank installed outer or inner house Deicing fluid circulated in solar collector and water tank, deicing fluid heated by sunshine then transfer temperature to water by heat exchanger inner water tank Make full use of sunshine and electric auxiliary heating on water tank Working principles: When temperature difference between solar collector and tank reaches set value, controller will start circulation pump automatically, contrarily, in case when temperature difference between solar collector and tank do reaches set value, circulation pump will be shut automatically Circulation pump makes heat-conducting liquid circulate automatically Heat-conducting liquid transfers heat to water by heat exchanger in water tank Water tank has electrical auxiliary heating system, when temperature of water tank does not reach T-max, electrical heating system will start to workGermany imported high efficiency selective blue titanium coating Laser welding between whole absorber panel and copper tube, high strength thicken heavy-duty aluminum frame Special low-iron tempered glass with transmittance more than 92% Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested Long lifespan, large absorber area and nice warm keeping European/North America special designed Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  System Main Configurations   1.Controlled by computer all the time   2.Imported blue titanium whole board solar collector from Germany   3.Pump station:SP116   4.Brand expansion case   5.Enamel/stainless water tank,depends on the buyer   System Design Strength   ♦ 1.Collectors installed outdoor, safe and artistic.   ♦ 2. Water tank wall-hanged,making full use of Balcony Space   ♦ 3.Various installing ways,extensive applications   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   Certifications: Solar keymark, SRCC, CE and CCC Accessories    About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly specialize   in developping and producing high quality flat plate  solor collector and solar water heating   system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the  tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the   72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can   be verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Products Showing Room   Sinoyin Solares in the Fair
