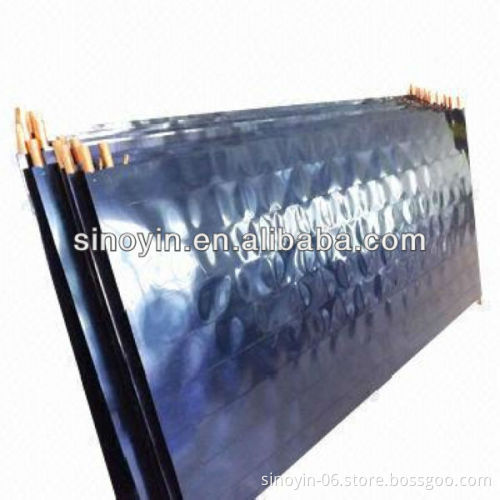

Solar Collector with 6063-T5 Frame, Low Iron Tempered Glass for Cover, EPDM for Sealing

Solar Collector with 6063-T5 Frame   Model Number: FP-GV2.05-80A   Collector Main Features: Dimensions: (L) 2050 x (W) 1050 x (H) 80mm Pipe type: grid Plate core copper tube material: Header pipe: 0.8 mm exhaust Gross area: 2.15m2 Lighting area: 1.97m2 Net weight: 37kg Medium volume: 1.3L Pipeline way: vertical Interface: Ø22 copper pipe Absorber: blue titanium (Germany) Absorptive: >95% Emissive: <5% Base plate: aluminum plate, 0.5mm Thermal insulation layer material beyond white tempered glass: 3.2 Light transmittance: 91.5 % Thermal efficiency: 0.77 K 50°: 0.95 Heat transfer medium: ethylene glycol solution Test pressure: 1.2MPa Working pressure: 0.6MPa Suggest flow: 70 to 80L/hm2 Number of series: <8 Certifications: Solar keymark,SRCC, CE and CCC Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   Solar Collector Advantages: Germany imported high efficiency selective blue titanium coating Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame Special low-iron tempered glass with transmittance >92% Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested Long lifetime, large absorber area, nice warm keeping, European and North America special designed Products Showing Room   About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the   72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
