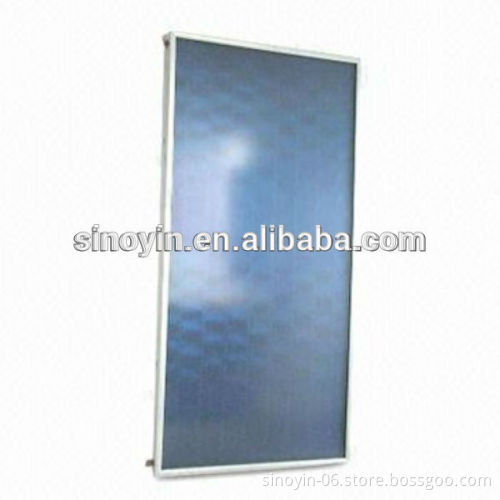

Flat Plate Solar Thermal Collector with Blue Titanium Coating and 0.75Mpa Working Pressure

Flat Plate Solar Thermal Collector with Blue Titanium Coating and 0.75Mpa   Working Pressure   Model Number: FP-GV2.05 , FP-GV2.15-1 Solar Collector Characteristics:   ♦ Germany imported blue titanium selectve coating,the most efficient absorber in the world   ♦ Whole plate laser welding,to minimize the damage to absorption layer and copper tube   ♦ 25 years lifespan   ♦ Advanced processing technology and equipment,to guarantee products in high quality   ♦ Approved by Solar keymark,SRCC,CE,ISO9001-2000 etc   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   Collector Special Features: Cover materials: low iron, tempered glass and T3.2mm Absorptivity/emissivity: 95±2%, 5±2%, and sputtering Construction type: grid type or S type Header and pipe: copper Working pressure: 0.75Mpa Test pressure: 1.2Mpa Keers 5 minutes Insulation material: fiberglass 45±5mm Density: 35kg/cube Frame: aluminum alloy over shell silver or black Sealing material: EPDM Welding: laser welding between pipe and absorber Available dimensions:Customized sizes are accepted 2,050 x 1,050 x 80mm 2,050 x 1,050 x 95mm 2,050 x 1,050 (800) x 80mm 2,500 x 800(800) x 80mm 2,015 x 1,015 x 76mm Packing: wooden case for LCL, carton box for FCL Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Collector Design Advantages:    ♦ High efficiency:S-type tube structure initiated in China,the low-flow instant   efficiency can up to 81.1%   ♦ High safety:yphoon,hail,snow,heavy rain resisted design   ♦ Pressurized operation:working pressure 0.75 Mpa,test pressure 1.2 Mpa   ♦ Anti-low-temperature:can still work properly under -40°c   ♦ Long life time:25 years   Products Showing Room Certifications:Solar-keymark,SRCC,CE About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly specialize   in developping and producing high quality flat plate solor collector and solar water heating   system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.   no any welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher   than the 72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
