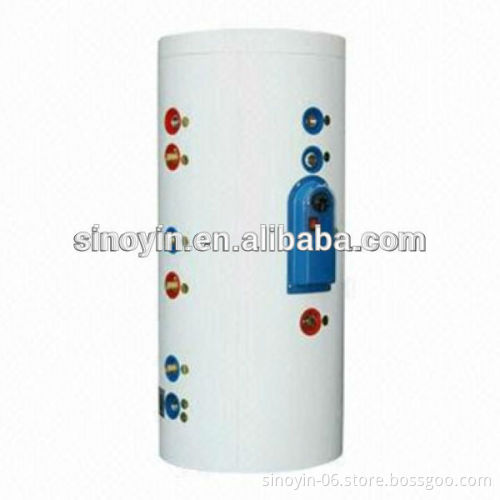

Solar water tank with double coil, made of stainless steel

Solar water tank with double coil,made of stainless steel   Model  Number: HSB-300L   Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10



Model Number	Capacity of Water Tank	Collector Area	Persons
PSD-1	1T	16 m²	18-20
PSD-8	8T	120 m²	120-160
PSD-20	20T	300 m²	350-400
PSD-30	30T	450 m²	500-600
PSD-50	50T	750 m²	800-1000

  Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine Certifications:Solar-keymark,SRCC,CE Solar System Special Features: Simple pump moves antifreeze solution through loop into solar heat collector, through collector's pipes and out of collector Then sun-warmed antifreeze solution flows into heat-transfer until where warms cool water heading into conventional hot water tank Antifreeze solution then returns to pump and again flows into solar collector without ever mixing with building's water Water is indirectly heated, indirect systems are encouraged in climates with extended periods of below-freezing temperatures About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the 72% line standard,very rare in China. 4.The Solar Poducts has been selected into the official web of China government,it   can be verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Products Showing Room   Sinoyin Solares in the Fair
