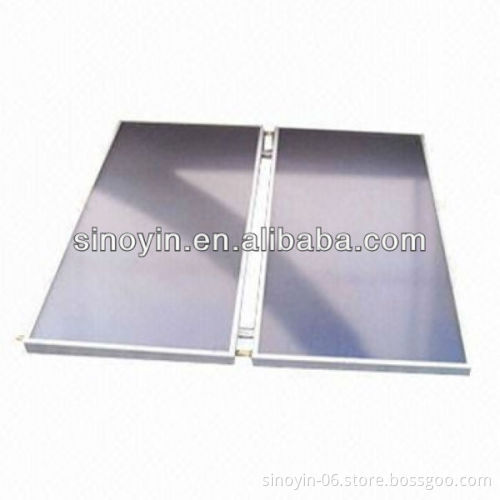

Blue Titanium Solar Collector with 0.75Mpa Working Pressure and 1.2Mpa Testing Pressure

Blue Titanium Solar Collector Solar Collector Characteristics:   ♦Germany imported blue titanium selectve coating,the most efficient absorber in the world   ♦ Whole plate laser welding,to minimize the damage to absorption layer and copper tube   ♦ 25 years lifespan   ♦ Advanced processing technology and equipment,to guarantee products in high quality   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   Collector Special Features: Header pipe material: copper, diameter 22mm Riser pipe material: copper, diameter 0.8mm Absorber fins material: aluminum, whole board laser welding Surface coating: blue titanium Working pressure: 0.75Mpa Testing pressure:1.2Mpa Thermal insulation: fiberglass, 35/45mm thick Sealing gasket: EPDM Collector Design Advantages:   ♦High efficiency:S-type tube structure initiated in China,the low-flow instant efficiency   can up to 81.1%   ♦High safety:yphoon,hail,snow,heavy rain resisted design   ♦ Pressurized operation:working pressure 0.75 Mpa,test pressure 1.2 Mpa   ♦ Anti-low-temperature:can still work properly under -40°c   Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Certifications:Solar-keymark,SRCC,CE About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly specialize   in developping and producing high quality flat plate solor collector and  solar water heating   system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the 72% line standard,very rare in China. 4.The Solar Poducts has been selected into the official web of China government,it   can be verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Products Showing Room   Sinoyin Solares in the Fair
