Central Solar Water Supplying Project,Model Number:PSD-8

Central Solar Water Supplying Project,Model Number:PSD-8   Certifications:Solar-keymark,SRCC,CE System Main Configurations   1.Controlled by computer all the time   2.Imported blue titanium whole board solar collector from Germany   3.Pump station:SP116   4.Brand expansion case   5.Enamel/stainless water tank,depends on the buyer   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine

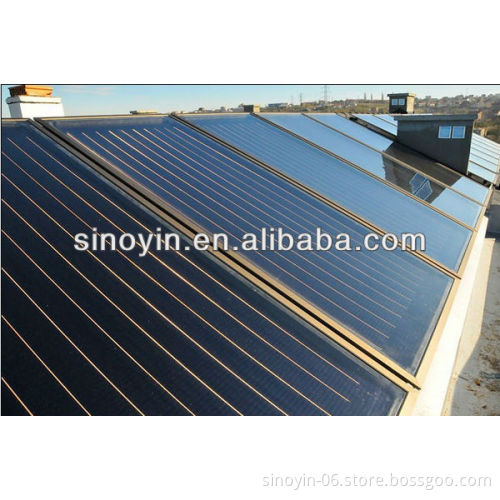

-Automatic plate leveling machine   System Characteristics   ♦ Unique designing plan for variety requirements   ♦ Intelligent control and automatic operation   ♦ Auxiliary heating system guarantee hot water supplying for 24 hours   ♦ Stable ,constant water supply with computer cotrolled and pressurized pipeline   ♦ Fully use solar collecting area   ♦ Low cost input,great rewards   ♦ Save energy,Reduce population   System Design Strength   ♦ 1.Collectors installed outdoor, safe and artistic.   ♦ 2.Water tank wall-hanged,making full use of Balcony Space   ♦ 3.Various installing ways,extensive applications   Water Tank Configuration Table

Model Number	Capacity of Water Tank	Collector Area	Persons
PSD-1	1T	16 m²	18-20
PSD-8	8T	120 m²	120-160
PSD-20	20T	300 m²	350-400
PSD-30	30T	450 m²	500-600
PSD-50	50T	750 m²	800-1000

  Products Showing Room About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the 72% line standard,very rare in China. 4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
