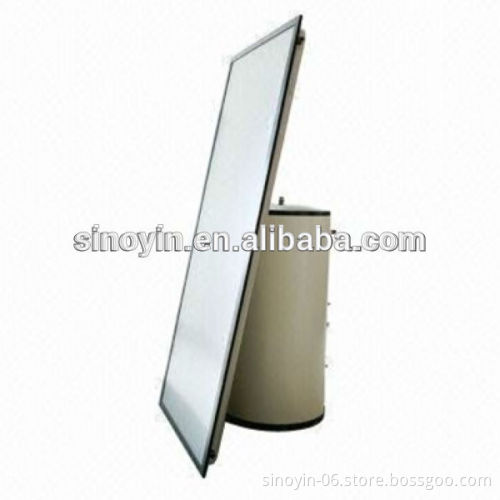

Flat Plate Solar Thermal Collector with Blue Titanium Absorber, Approved by SRCC

Flat Plate Solar Thermal Collector with Blue Tech and Tinox Absorber,   Approved by SRCC   Model  Number: FP-GV2.15-A   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   Collector Special Features: Dimensions: 2,050 x 1,050 x 80mm Gross area: 2.15m² Aperture area: 1.93m² Absorber area: 2.05m² Cover materials: low iron, ultra white tempered glass 3.2mm Cover transmission: 90% Weight: 37kg Absorber: aluminum Surface treatment: sputtering (Germany imported blue titanium coating) Absorptivity: 95%±2% Emissivity: 5%±2% Header material: copper TP2/CA1220 Header tuber size: Ø22mm x thickness 0.6mm G1/2 inches Riser material: copper TP2/CA1220 Riser tuber size: Ø8mm x thickness 0.6mm Working pressure: 0.75mPa Test pressure: 1.2mPa, keeps 5 minutes Maximum power: G=1,000W/m² per collector: 1.25kW Heat loss coefficient a1: 4.574W/m².K Heat loss coefficient a2: 0.03W/m².K Maximum stagnation temperature for ambient conditions of 1,000W/m² and 30 deg. C: 160 deg. C Insulation material and thickness: fiberglass, 35±6mm Frame: aluminum-alloy Back plate: galvanized steel 20ft container quantity: 129 pieces 40ft container quantity: 266 pieces 40ft high container quantity: 296 pieces Packing: full carton box into wooden case for LCL and carton box for FCL Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Certifications:Solar-keymark,SRCC,CE Products Showing Room About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the   72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
