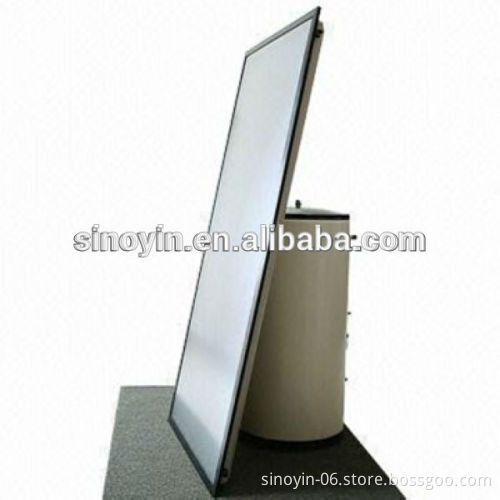

Flat Plate Solar Thermal Collector, Used for Heating Water

Flat Plate Solar Thermal Collector,Used for Heating Water   Model Number:HSB-95-500L Home sytem to use System Main Configurations   1.Controlled by computer all the time   2.Imported blue titanium whole board solar collector from Germany   3.Pump station:SP116   4.Brand expansion case   5.Enamel/stainless water tank,depends on the buyer   System Characteristics :   ♦ 1.Integrated with buildings more perfectly by using flat plate solar collector   ♦ 2.More comfortable enjoymnt for split pressurized design   ♦ 3.More applicable using for high building residents   ♦ 4.Anti-shock,anti-freeze design   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   System Special Features: In indirect system, also known as closed loop, simple pump moves antifreeze solution through loop into solar heat collector, through collector's pipes, and out of collector, then sun-warmed antifreeze solution flows into heat-transfer until where warms cool water heading into conventional hot water tank Antifreeze solution then returns to pump and again flows into solar collector without ever mixing with building's water Water is indirectly heated, indirect systems are encouraged in climates with extended periods of below-freezing temperatures Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  System Design Strength   ♦ 1.Collectors installed outdoor, safe and artistic.   ♦ 2. Water tank wall-hanged,making full use of Balcony Space   ♦ 3.Various installing ways,extensive applications   Certifications:Solar-keymark,SRCC,CE   About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly specialize   in developping and producing high quality flat plate solor collector and solar water heating   system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any welding on the    tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the 72% line    standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Products Showing Room   Sinoyin Solares in the Fair
