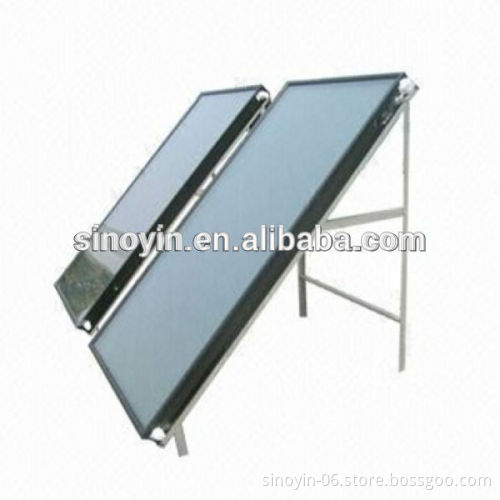

Solar Collector with Whole Laser Welding Absorber, Easy to Install on Flat Roofs and Walls

Solar Collector with Whole Welding Laser Absorber   Model Number:FP-GV2.05 (2015*1015*76mm)   Solar Collector Characteristics:   ♦ Germany imported blue titanium selectve coating,the most efficient absorber in the world   ♦ Whole plate laser welding,to minimize the damage to absorption layer and copper tube   ♦ 25 years lifespan   ♦ Advanced processing technology and equipment,to guarantee products in high quality   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   Specifications:   Dimension L×W × H(mm):2015*1015*76mm   Gross Area(m²):2.05 m²   Absorber Area (m²): 1.82 m²   Number of covers:1   Cover material:Low iron tempered glass   Cover Thickness(mm):3.2mm   Cover Transmittance:>92%   Weight:41.5 Kg   Absorber:   Material:Aluminium board   Surface Treatment:Sputtering(Germany imported Blue titanium coating)   Absorptivity:95±2%   Emissivity: 5±2%   Construction Type:Grid type   Header Material:Copper TP2/CA1220   Header tube Size:Ø22mm x (thickness) 0.8 mm   Riser material: copper TP2/CA1220   Riser tuber size: Ø8mm x (thickness) 0.75mm   Working pressure: 0.75MPa   Test pressure: 1.2MPa, keeps 30 minutes   Whole Collector:   Maximum power, G = 1,000W/m² per collector: 1.352 kW   Thermal efficiency: 0.788   Heat loss coefficient (a1): 3.411 W/m².K   Heat loss coefficient (a2): 0.024 W/m².K   Maximum stagnation temperature for ambient conditions of 1,000W/m² and 30°C: 188.4°C   Thermal Insulation:   Insulation material: fiberglass   Insulation thickness: 35 ± 5mm   Insulation Density: 48 kg/cube   Casing:   Frame:Galvanized steel   Frame color: silver or black   Back plate: Galvanized steel   Sealing gasket: EPDM   Packing dimensions: 2,070 x 1,160 x 110mm   Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Solar Collector Advantages: Germany imported high efficiency selective blue titanium coating Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame Special low-iron tempered glass with transmittance more than 92% Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested Long lifetime, large absorber area, nice warm keeping, European and North America special designed 25-years warranty Accessories:    About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly specialize   in developping and producing high quality flat plate solor collector and solar water heating   system for more than 6 years.    Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.   no any welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the 72% line   standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Products Showing Room   Sinoyin Solares in the Fair
