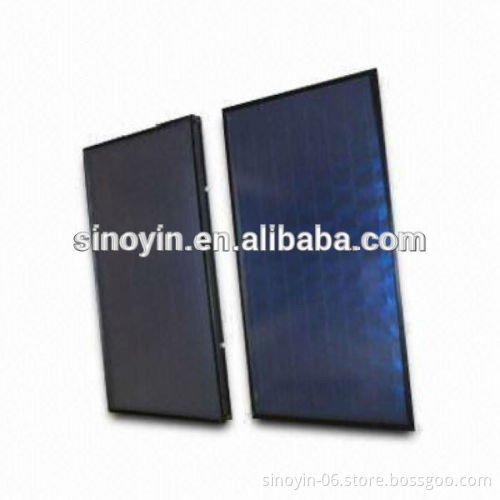

Solar Collector with Whole Laser Welding and Blue Titanium Absorber

Solar Collector with Whole Laser Welding and Blue Titanium Absorber   Model Number: FP-GV2.15,FP-GV2.05-1   Certifications:Solar-keymark,SRCC,CE Solar Collector Characteristics:   ♦ Germany imported blue titanium selectve coating,the most efficient absorber in the world   ♦ Whole plate laser welding,to minimize the damage to absorption layer and copper tube   ♦ 25 years lifespan   ♦ Advanced processing technology and equipment,to guarantee products in high quality   ♦ Approved by Solar keymark,SRCC,CE,ISO9001-2000 etc   Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   Collector Special Features: For on-roof, flat-roof and facade mounting Dimensions: 2,050 x 1,050 x 95mm Gross area: 2.15 Absorber area :2.05 Aperture area :1.98 Dry weight::38kg Liquid volume: 0.46g Nominal flow rate: 21GPH (0.35GPM) Nominal pressure loss: 160mbar (water, propylene-glycol, 68F) Collector connections: 2 connectors at top, 12mm for compression fittings Absorber type: 12mm/serpentine, laser-welded to aluminum absorber plate Absorber coating: highly selective on aluminum Absorption/emission: 95/5% Covering: low iron, clear, solar safety glass (ESG) Transmission of covering: 88% Cover impact resistance passed optional impact resistance tests following EN12975-2 Insulation fiber glass/1.2 inches Collector frame material: powder coated aluminum Heat loss coefficient: a1 (k1) 3.95 W/(m²K) Heat loss coefficient: a2 (k2) 0.0165 W/(m²K) Maximum stagnation temperature: 375.8°F (191°C) Maximum operating pressure: 10 bar Collector Design Advantages:   ♦ High efficiency:S-type tube structure initiated in China,the low-flow instant efficiency   can up to 81.1%   ♦  High safety:yphoon,hail,snow,heavy rain resisted design   ♦ Pressurized operation:working pressure 0.75 Mpa,test pressure 1.2 Mpa   ♦ Anti-low-temperature:can still work properly under -40°c   ♦ Long life time:25 years   ♦ High Standard:Follow the standard of   ISO9806,EN12975,GB/T6424,ASNZS2535.1,ASHRAE109.   Water Configuration Table

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Products Showing Room   About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the   72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
