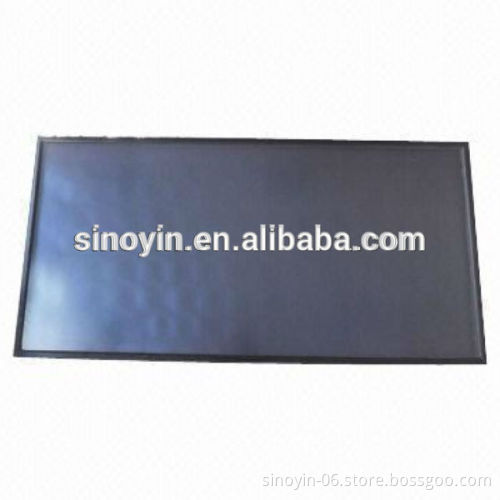

Solar Water Heater Collector, 1.3L Medium Volume

Solar Water Heater Collector   Model Number: FP-GV2.15(2050*1050*80mm)   System Special Features:  Material: plate core copper tube Header: 0.8mm Exhaust gross area: 2.15m2 Lighting area: 1.97m2 Medium volume: 1.3L Pipe line way: vertical Interface: copper pipe Absorber: blue titanium (Imported from Germany) Absorptivity: >95% Emissivity: <5% Base plate: aluminum plate and 0.5mm Thermal insulation layer material beyond white tempered glass 3.2 light transmittance 91.5% Thermal efficiency: 0.795 K50°C: 0.95 Heat transfer medium: ethylene glycol solution Test pressure: 1.2MPa,keeps 5 minutes Working pressure: 0.75 MPa Suggest flow: 70 to 80L/h.m2 Number of series: <8 Net weight: 37kg Certifications: Solar keymark, SRCC, CE and CCC Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   System Advantages: Germany imported high efficiency selective blue titanium coating Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame Special low-iron tempered glass with transmittance >92% Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested Long lifetime, large absorber area,good warm keeping, European and North America special designed Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate  solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the  tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the   72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Products Showing Room     The energy saving&environmental protection products fair of China
