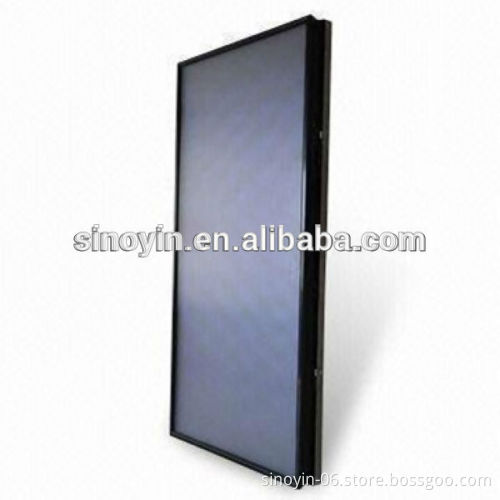

Flat Plate/Panel Solar Thermal Collector with Whole Board Blue Titanium Absorber and Laser Welding

Flat Plate/Panel Solar Thermal Collector with Whole Board Blue Titanium   Absorber and Laser Welding   Model Number:FP-GV-A2.15  (2050*1050*80mm)     Certifications:Solar-keymark,SRCC,CE Solar Collector Characteristics:   ♦ Germany imported blue titanium selectve coating,the most efficient absorber in the world   ♦ Whole plate laser welding,to minimize the damage to absorption layer and copper tube   ♦ 25 years lifespan   ♦ Advanced processing technology and equipment,to guarantee products in high quality
  Quality Assurance--Solar Collector Test   * Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test   * Ice ball impact test                                                            How to produce the collector ?  In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine   Collector Special Features: Dimension(L x W x H): 2,050 x 1,050 x 80mm Gross area: 2.15m² Aperture area: 1.96m² Absorber area: 1.96m² Number of covers: 1 Cover material: low iron and tempered glass Cover thickness: 3.2mm Cover transmission: >92% Weight: 38kg Absorber of solar collector (imported from Germany company): aluminum board Surface treatment: sputtering (cermet) Absorptivity: 95 ±2% Emissivity: 5 ±2% Construction type: grid type Header material: copper TP2/CA1220 Header tuber size: 22mm x thickness 0.8mm Riser material: copper TP2/CA1220 Riser tuber size: 8mm x thickness 0.75mm Working pressure: 0.75Mpa Test pressure: 1.2MPa, keeps 30 minutes Maximum power G = 1,000W/m² per collector: 1.52kW Thermal efficiency: 0.795 Heat loss coefficient a1: 2.889W/m².K heat loss coefficient a2: 0.026W/m².K Maximum stagnation temperature for ambient conditions of 1,000W/m² and 30°C: 190.6°C Insulation material: fiberglass Insulation thickness: 50 ±5mm Density: 35kg/cube Frame: aluminum alloy Frame color: silver or black Back plate: aluminum plate Sealing gasket: EPDM Packaging size: 2,070 x 1,160 x 110mm 20-foot container quantity: 119pcs 40-foot container quantity: 236pcs 40-foot high container quantity: 256pcs Packaging: wooden case for LCL, carton box for FCL Water Tank Specifications:

Tank Capacity S-S/Enamel	Solar Collector FP-GV2.0	Electrical backup	person available
100L	2m²	1.5kw	2-3
200L	2m² or 4m²	1.5kw	3-4
300L	4m²	2.5KW	5-6
500L	8 m²	2.5KW	8-10

  Products Showing Room About Sinoyin Solares   Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly   specialize in developping and producing high quality flat plate solor collector and solar   water heating system for more than 6 years.   Why choose Sinoyin Solares?   1.S-type tube flat plate solar collector,have gotten the line patent in China.no any   welding on the tube,no any leakage.   2.Whole plate laser welding,to minimize the damage to absorption layer.   3.The instant heat efficiency of the collector can up to 81.1%,much higher than the   72% line standard,very rare in China.   4.The Solar Poducts has been selected into the official web of China government,it can be   verified on the internet.   How to contact us ?   Victoria   Suzhou Sinoyin Solares Co.,Ltd   Web:www.sinoyin.com   Tel:86-0512-88876960/18915433725   Fax:86-0512-88876964   Sinoyin Solares in the Fair
