multi-functional stone edge polishing machine price

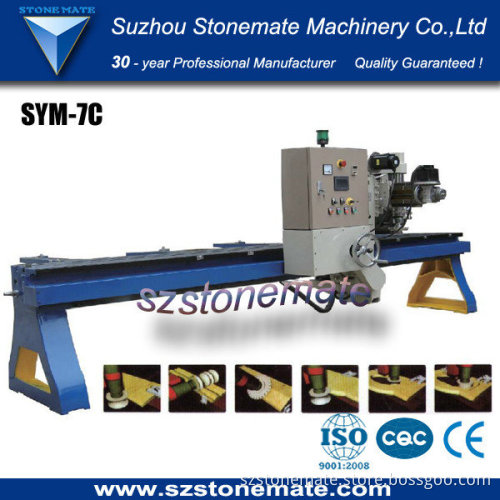

Products Show Overview  Details Application  Machines ready! Product Description SYM-7C is a newly-developed multi-functional stone processing machine . It is chiefly applied in processing the straight or curved edges and profiling . It can not only be used for grinding ,profiling ,polishing ,but also for frilling and milling .
1) Data and function can be set by touch screen.the machine will feed in and compensate the waste according to the set parameters.the parameters can be stored and memorized in the computer system.

2) With sealed oil-immersed guide,the machine can work with high precision and long life.

3) Double-T type table make it easy to install slabs and improve efficiency.

4) The motor head can be rotated freely and automatically within 360°.one key operation for traveling,feeding,adjusting rotation speed and lifting of motor head.

5) When the joint of arm is open,the machine can be used for processing both inner and external curves.

6) The traveling speed of motor is stepless .it can meet various demands from customers.

7) The control board is easy to operate.

Product Name	Multi-functional Stone Profiling Machine
Brand	STONEMATE
Color	Blue & grey
Manufacturer	STONEMATE
Application	Stone edge profiling

Specification

TECHNICAL PARAMETER	SYM-7C	SYM-7BH
power supply	3.75-4.75kw
processing length	≤3100mm
drilling diameter	6-100mm
width of decorative lines	≤600mm
stone processing thickness	≤200mm
traveling speed	0.38-1.92m/min	0.46-2.30m/min
amount of feeding in and back out	0.62-3.10mm/sec	0.74-3.72mm/sec
angle of motor head	random
arm radius	600mm
range of curved border	both inner and external curves
rotation speed of grinding head	1900r/min	3800r/min
overall dimension	3800*1500*1510mm
