Hand Ceramic Tile Cutter for Granite

$2500.00

1-2 set
$2200.00

3-9 set
$2000.00

≥10 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: shanghai port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	15 Set/Sets per Day
Payment Type:	L/C,D/P,D/A,T/T
Port:	shanghai port

Product Description

Stonemate

Hand ceramic tile cutter cutter for granite

Product Description

Hand ceramic tile cutter cutter for granite

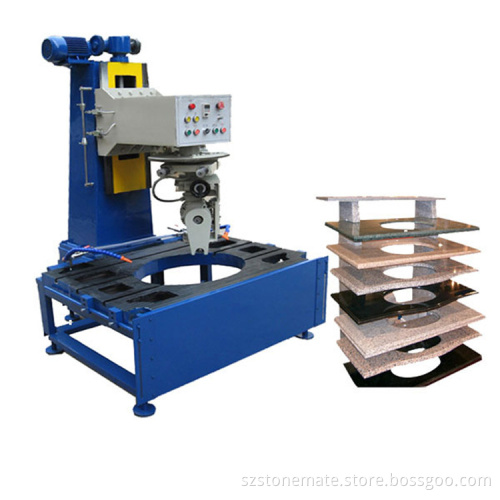

SHC-580 series Kitchen Bathroom stainless sink vanity countertop hole cutting machine

SHC-580 series is Suzhou Stonemate self-manufactured Sink hold cutting machine. Its blade has a rotation speed of 6400r/min, making it capable of easily handling the job of cutting holes on stone slabs.

Being attached with Concave blade, SHC-580 can achieve a much faster cutting speed than any other machines. It's designed to have a high precision of cutting oval holes and another model SCTP-4 is designed to polishing. Together they become one pair of hot selling products to provide an easy to cut oval hole and polish edge.

Technical Parameter	SHC-580
Power Supply	2.02 kw
Rotation speed of Blade Axis	6400 r/min
Rotation Speed of Main Axis	0.7-1.4 r/min
Rotation Angle of Blade Axis	25°
Distance from center of blade axis to worktable	0-340 mm
Blade Diameter	Φ105-Φ125 mm * Φ20 mm bore
Inner Diameter of Model	Φ100 mm
Max hole diameter	<=580 mm
Min hole diameter	>=290 mm
Worktable	1200*780 mm
Overall Dimension	123012001830 mm

Hand ceramic tile cutter cutter for granite
