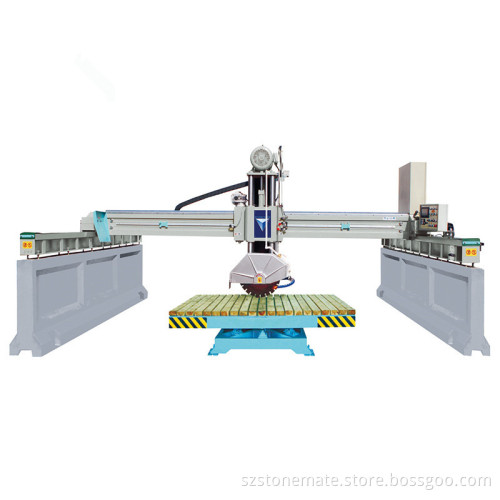

China Best Granite Cutter Marble Cutting Countertop Stone Saw Bridge for Sale
$21000.00 - $23500.00/unit
- Min. Order:
- 1 unit
- Min. Order:
- 1 unit
- Port:
- Shanghai/Xiamen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Supply Ability: | 50 Unit/Units per Month |
---|---|
Payment Type: | L/C,T/T |
Port: | Shanghai/Xiamen |
Product Description
Product Description
Stonemate
Product Description
Features:
1.Simple installation and easy operation. All axis(XYZ)movements are coordinated and controlled by imported PLC.
2.High-stength cast-iron platform,bridge,sliding rail,blade holder to guarantee the machine a good stablity,durability and smooth running.
3.Bridge traverse along the oil-immersed V shape guiding rail.Spindle slides on oil immersed double-V ahsped cast iron guides.
4.Guides and rails are well protected from water and dust.
5.Working table powered hydraulically can tilt at the angle of 85 degree and rotate 360 degree (each 45 degree automatically and any degree manually)
Product code | SQQ-400 |
Blade diameter | 350--400mm |
Max.working dimensions(L*W*H) | 3200*2000*60mm |
Workbench dimension(L*W) | 3200*2000mm |
Workbench tilting degree | 0-85 degree |
Workbench rotating degree | 0-90,45-90-135-360,1-360 degree |
Main motor power | 11kw |
Water consumption | 3.5 m3/h |
Overall dimension(L*W*H) | 6200*4800*2600 mm |
Gross weight | 5000kg |
Keyword | Stone cutting machine |
