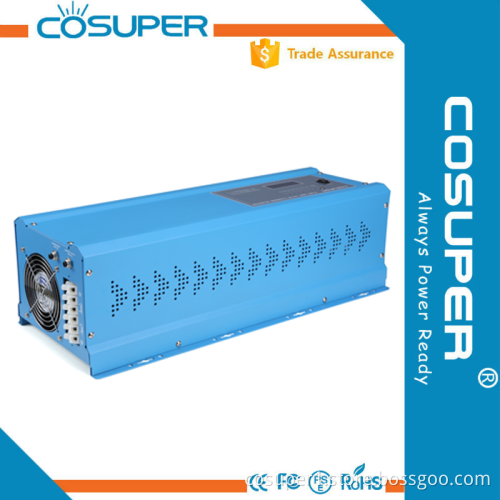

split phase 6000w 48v power inverter pure sine wave

split phase 6000w 48v power inverter pure sine wave

Models	LPT6000-124	LPT6000-148	LPT6000-224	LPT6000-248
Output Power	6000W
Surge Power	18000W
DC Input Voltage	24VDC	48VDC	24VDC	48VDC
Output Voltage	100/110/120VAC±5%		220/230/240VAC±3%
Output Frequency	50/60Hz ±0.5%
Output Waveform	True sine wave(THD<5%)
Power Factor	0.1~1
Efficiency	84%	86%	85%	88%
No Load Power	<55W(Power saving mode)
Transfer Time	<8 ms
AC Range	90~135VAC/190~245VAC
Voltage Range	20.0~31.0VDC	42.0~60.0VDC	20.0~31.0VDC	42.0~60.0VDC
Charge Current	65A	35A	70A	40A
Fault Indication	LED Red
Remote Control	RJ11
Safety	UL458		LVD(EN60950)
EMC	FCC Part15  ClassA		CE   (EN55022:2006+A1:2007)
Operating Temp	-20~50℃
Working Humidity	20~90%RH
Storage Temp	-30~70℃
Cooling	Automatically controlled cooling fan
Weight (kg)	46
Size (mm)	670*255*185 (L*W*H)
Application	Vehicle,Yacht,Solar power systems,Portable equipments,Power tools,Home and Office appliances

Packaging & Shipping   FAQ   Q 1. How's the delivery time ? A. usually it will take about 15 days for production   Q 2. Tell me the standard of package? A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.   Q 3. What kind of material of transformer? A. 100% copper   Q 4.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.   Q 5.We want to know month capacity.   A. It depends on which model.For example for relay type small capacity , month capacity can reach near 20000pcs   and big capacity near 3000pcs.   Q 6.Does the inverter connect with solar system ? A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..   Q7. what kind of certificate you have ? A. Our company already achieve CE FCC PSE RHOS UL(pending) . Contact US
