3000 watt power inverter 12vdc to 220vac dc to ac power inverter price
- Delivery Time:
- 14 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China (Mainland) |
|---|
1. Auto switch 4 FUN: DC to AC, AC bypass, AC charger and UPS
2. Start Auto restart while AC is recovering (optional)
3. Dry contact: input no AC signal to other device( optional)
4. Remote control RJ45 :PTM-10 and PTM-12(optional)
5. Pure sine wave output ,input & output fully isolation
6. Three-gear switches ,with energy saving mode
7. Excellent loads with 3*rated start power
8. 7 LED display working, Digital LCD display data info
9. Built-in AC bypass relay, UPS function 10. Advanced microprocessor control 11. Input polarity/UVP/OVP/OSP/OLP/OTP Why select our mppt solar inverter 1. Excellent performance : DC to AC, AC bypass, AC charger, UP 2. Cost-effective, digital LCD display date information. 3. UPS Function
4. Fast delivery and good after-sale service
5. Customization accepted

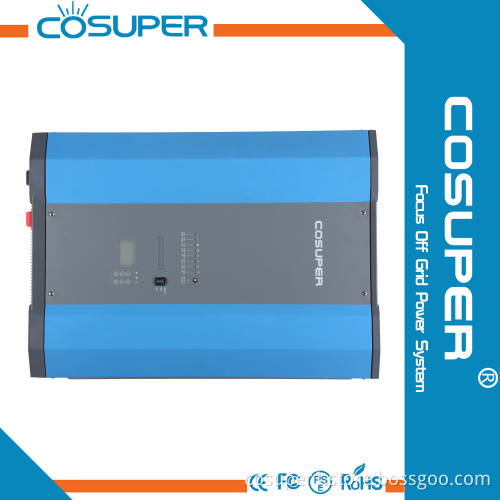

6. Fashionable and reasonable design 3000 watt power inverter 12vdc to 220vac pictures
Pure Copper Transformer
3000 watt power inverter 12vdc to 220vac Specification Item | Models | CPS3000-1244/6 | CPS3000-1484/6 | CPS3000-2244/6 | CPS3000-2484/6 |
AC OUTPUT | Output Power | 3000W | |||
Surge Power | 9000W(≤2S) | ||||
Output Frequency | 50/60Hz ±0.5% | ||||
Output Waveform | True sine wave(THD<3%) | ||||
P·F Allowed | COSθ-90°~COSθ+90° | ||||
Efficiency | 86% | 88% | 87% | 90% | |
DC INPUT | Input Voltage | 24VDC | 48VDC | 24VDC | 48VDC |
Voltage Range | 20.0~31.0VDC,*2 for 48VDC/21.0~32.0VDC,*2 for 48VDC | ||||
Fault Indication | LED Red and Buzzer Alarm | ||||
Remote Control | RS-232/RJ45(Optional) | ||||
AC Charger | AC Range | 184-253VAC / 154-253VAC | |||
100-135VAC / 90-135VAC | |||||
Fast Voltage | 14.0~15.1V (*2 for 24vdc,*4 for 48vdc) | ||||
Float Voltage | 13.3-13.8V (*2 for 24vdc,*4 for 48vdc) | ||||
Over charge Protection | 15.7V for 12V(*2 for 24vdc,*4 for 48vdc) | ||||
Charge Current | 40A | 25A | 45A | 30A | |
MPPT Solar Charger(optional) | solar panel Max | 1260W/1680W | 2340W/3120W | 1260W/1680W | 2340W/3120W |
Rated Voltage | 12V/24V/48V Auto | ||||
Rated charge current | 45A/60A | 45A/60A | 45A/60A | 45A/60A | |
DC Load Current | 15A (MAX) | ||||
Input PV Voltage | 150VDC(MAX) | ||||
Temp. compensation | -13.2mv/℃(*2 for 24vdc,*4 for 48vdc) | ||||
Bypass | Transfer Time | <8 ms | |||
Input Vot. waveform | Utility AC or Generator (Sine wave) | ||||
Max bypass current | 60A/30A | ||||
Others | Working Humidity | 20-90%RH | |||
Safety and EMI | UL458 | LVD(EN60950) | |||
Working temp. | -20~50℃ | ||||
Storage Temp | -30~70℃ | ||||
Cooling | Temperature controlled cooling fan | ||||
Size (mm) | 650*505*210(L*W*H) | ||||
Weight (kg) | 32 | ||||
Off-grid Power System Solution
application case
Packaging & Shipping
Our Services 1. Warranty of our products? We provides warranty against defects in materials and workmanship for its uninterruptible power supply. Power inverter/chargers including inverter 12/24/48V, solar charger controllers. Directly Manufacturer Fully Guarantee For 18 moths. 2. Guides and After-sale Service Consultancy Our team will offer these guides below: A. Need an Accessory? B. Products Repair? C. Power Problems To Solve? D. Power Protections Solution? 3. 24 Hours Service Consultancy For You and Customers First Company Information 1. Our Team
2. 2016 SNEC ShangHai
3. Factory and Loboratory
FAQ Q1. What kind of material of transformer? A. 100% pure copper transformer , NOT Copper-clad aluminun Q2. The standard of package? A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection. Q3.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM. Q4.Where is your market? A. Our products are popular in USA, Japan, Europe , Carmeroon, Sounth Africa ,Egypt ,Cambodia, Australia ,Canada ,Jamaica,Brazil and so on.Hope to cooperation with you ~ Q5.Application ? A.Viehicle,Yacht,Solar power system,Portable Equipments, Power tools,Home and Office appliances. Q6. What kind of certificate you have ? A. Our company already achieve ISO, CE ,ROHS,FCC,PSE UL(pending) .Also have patent for an invention Q7. What's the payment term? A. We accept TT,Paypal ,Western Union ,MoneyGram. Q8. Delivery time ? A. In normal it will take about 14-21 days after payment. Certifications
