High Quality PPR pipe making extruder plastic machine extrusion line supplier

High Quality PPR pipe making extruder plastic machine extrusion line supplier Description of PPR pipe making line: The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new style grooves. All of these offer good plastification and mixing effect.  Special design of basket die head of for PPR large diameter pipe with thick wall offer lower melting temperature,  good mixing,lower pressure of cavity, and stable production.   Feature and advantage of PPR pipe making line: (1) This production line aim at the characteristic of the PPR pipes. (2) It adopts high efficiency single screw extruder can equipped with the Siemens PLC controlling system. (3) It can realize the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PE-RT, PEX, PB pipe.   Process Flow of PPR pipe making line:
Raw material+master batches → Mixing → vacuum feeding → material dryness → single screw extruder →color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting &packing   Technical Parameters of PPR pipe making line:

Model	Screw Diameter (mm)	L/D	Pipe range	Capacity (kg/h)	Main motor power (kw)	Total power (kw)	Line length (m)
WT-PPR-63	65	33:1	20-63	70-110	45	90	24
WT-PPR-110(A)	75	33:1	20-110	110-150	55	110	30
WT-PPR-110(B)	75	33:1	75-110	110-200	90	150	30
WT-PPR-160	90	33:1	110-160	200-300	110	180	32

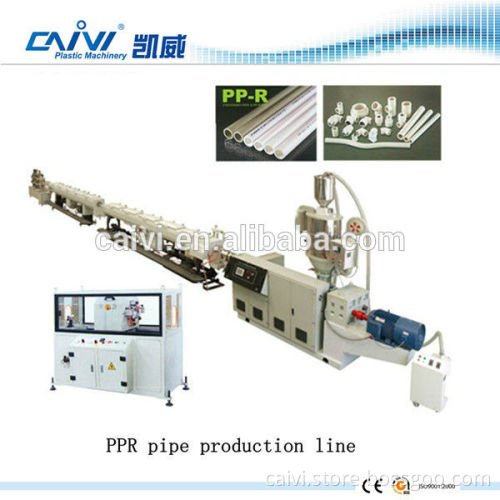

  Pictures of PPR pipe making line:

            Exhibition show:
  Shipping show:
  If  you want more information about PPR pipe making line, please contact us, thanks! Our company is near Shanghai, about 130km. Welcome to our factory anytime! Skype: caivisales1 Alice Chow
