PVC single wall corrugated electric wire conduit hose extrusion machine

PVC single wall corrugated electric wire conduit hose extrusion machine Description of PVC corrugated hose machine: This plastic corrugated pipe line equips with high quality machines in the whole line. With good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost. Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die. Used as wire and cable passing pipe, washing machine drain pipe, dust collector pipe and ventiduct.   Process Flow of PVC corrugated hose machine: Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugated forming machine → meter measure → double winder → finished product inspecting&packing   Technical parameters of PVC corrugated hose machine:

Model	Screw diameter (mm)	L/D	Pipe range (mm)	Capacity (kg/h)	Main motor Power (km)	Total power (kw)	Line length (m)
BW-PE50	50	30:1	8-50	50	22	50	12
BW-PE75	65	30:1	16-75	100	37	80	16

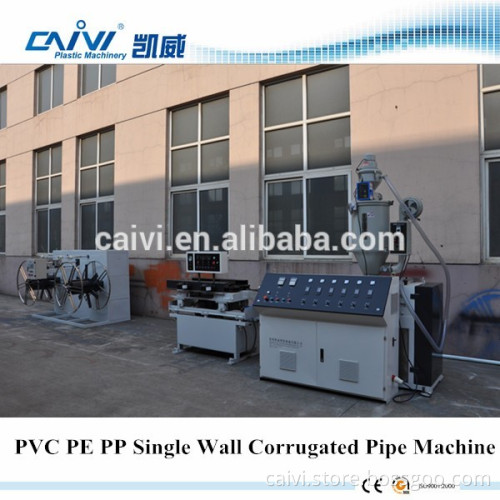

  Pictures of PVC corrugated hose machine:
  Exhibition show:   Shipping show:     If  you want more information about PVC corrugated hose machine, please contact us, thanks! Our company is near Shanghai, about 130km. Welcome to our factory anytime! Skype: caivisales1 Alice Chow
