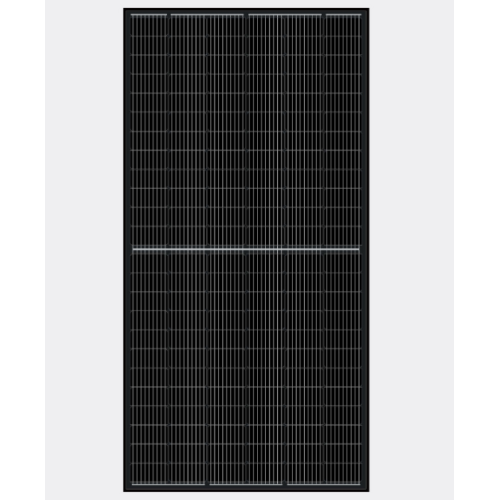

450W Full Black Solar Monocrystalline Panels EU Stock
  • 450W Full Black Solar Monocrystalline Panels EU Stock
  • 450W Full Black Solar Monocrystalline Panels EU Stock
  • 450W Full Black Solar Monocrystalline Panels EU Stock
  • 450W Full Black Solar Monocrystalline Panels EU Stock
450W Full Black Solar Monocrystalline Panels EU Stock
450W Full Black Solar Monocrystalline Panels EU Stock
450W Full Black Solar Monocrystalline Panels EU Stock
450W Full Black Solar Monocrystalline Panels EU Stock

450W Full Black Solar Monocrystalline Panels EU Stock

  • USD0.22
    ≥100000 Others
Payment Type:
T/T
Incoterm:
FOB
Min. Order:
100000 Others
Min. Order:
100000 Others
Delivery Time:
10-15 Days
Transportation:
Ocean
Port:
SHANGHAI
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: CHINA
Productivity: 1GW/Year
Supply Ability: 10containers/Day
Payment Type: T/T
Incoterm: FOB
Certificate: ISO9001
HS Code: 85414020
Transportation: Ocean
Port: SHANGHAI
Product Description
Product Description
Product Overview

FULL BLACK MONO 9BB HC 425-450W

RS7I-M HALF-CELL series is produced with high efficiency multi-busbar cells, which can reduce the module internal power loss to improve its conversion efficiency, as well as lower the failure risk caused by cracks and broken busbar to enhance the module reliability. Combined with half-cell technology, the module is highly resistant to hot-spot crisis caused by shadow effect. The full black design makes the module appearance outstanding and ideal for building installations. Poly Solar Panel is High Efficiency Solar Panel for Solar Systems and it's solar power is always high


6

1



3

4

5

PRODUCT SPECIFICATIONS


ELECTRICAL DATA(STC)

STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3

Rated Power in Watts-Pmax(wp) 425W 430W 435W 440W 445W 450W
Open Circuit Voltage-Voc(V) 48.3V 48.5V 48.7V 48.9V 49.1V 49.3V
Short Circuit Current-Isc(A) 11.23A 11.31A 11.39A 11.46A 11.53A 11.6A
Maximum Power Voltage-Vmp(V) 40.5V 40.7V 40.9V 41.1V 41.3V 41.5V
Maximum power current-Imp(A) 10.5A 10.57A 10.64A 10.71A 10.78A 10.85A
Module Efficiency(%) 19.24% 19.46% 19.69% 19.91% 20.14% 20.37%



ELECTRICAL DATA(NOCT)


Maximum Power-Pmax(WP) 317.4W 321.1W 324.9W 328.6W 332.3W 336.1W
Open Circuit Voltage-Voc(V) 45.3V 45.5V 45.7V 45.8V 46.0V 46.2V
Short Circuit Current-Isc(A) 9.08A 9.15A 9.21A 9.27A 9.33A 9.38A
Maximum Power Voltage-Vmp(V) 37.7V 37.9V 38.1V 38.3V 38.5V 38.6V
Maximum Power Current -Imp(A) 8.42A 8.47A 8.53A 8.59A 8.64A 8.7A
NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.



TEMPERATURE&MAXIMUM RATINGS

Nominal Operating Cell Temperature(NOCT) 45°C±2°C
Temperature Coefficient of Voc -0.32%/°C
Temperature Coefficient of Isc 0.05%/°C
Temperature Coefficient of Pmax -0.39%/°C
Operational Temperature -40~+85°C
Maximum System Voltage  1500V(IEC)/1500V(UL)
Max Series Fuse Rating 20A
Limiting Reverse Current 20A


MECHANICAL DATA

Solar Cells Half-Cell Mono 166x83mm, 9 Bus bars
Cell configuration 144 Cells (6x24)
Module dimensions 2115x1052x40mm(82.7*41.4*1.57in)
Weight 25KGS
Front Cover 3.2mm Tempered Glass
Frame Material Black Anodized Aluminum Alloy
J-Box IP67 or IP68, 3 Diodes
Cable 4mm2(IEC)/12AWG(UL),300mm
Connectors MC4 or MC4 Comparable
Standard Packaging 27pcs/pallet


PACKAGING CONFIGURATION

40HQ
Modules per container 616pcs
Package 27pcs/pallet, 2pcs/carton
Package Number 22pallets + 11 cartons
