Product Overview

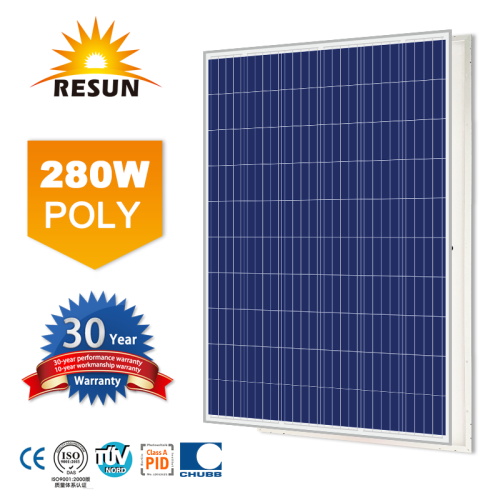

280W poly solar panel with 60 solar cells
RS6C-P is a robust solar module with 60 PERC solar cells. These modules can be used for on grid solar applications. Our meticulous design and production techniques ensure a high yield,long-term performance for every module produced. Our rigorous quality control and in house testing facilities guarantee Resun Solar’s modules meet the highest quality standards possible.
Product Details
* Poly Solar Panel is High Efficiency Solar Panel for Solar Systems
* 270-290W Power output
* High module conversion efficiency (up to 17.83%),through superior manufacturing technology.
* Guaranteed 0-+5W positive power output tolerance ensures high reliability.
* Anti-reflective, hydrophobic coating improves light absorption and reduces surface dust.
* Excellent performance under low light environments (mornings,evenings and cloudy days.)
* Suitable for harsh environments,such as coasts,deserts and lakes withstand high level of wind loads(2400Pa) and snow loads (5400 Pa)
Specification
ELECTRICAL DATA(NOCT)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
|
Rated Power in Watts-Pmax(wp)
|
270W
|
275W
|
280W
|
285W
|
290W
|
|
Open Circuit Voltage-Voc(V)
|
37.9V
|
38.1V
|
38.2V
|
38.3V
|
38.4V
|
|
Short Circuit Current-Isc(A)
|
9.76A
|
9.32A
|
9.40A
|
9.49A
|
9.59A
|
|
Maximum Power Voltage-Vmp(V)
|
30.7V
|
31.1V
|
31.4V
|
31.6V
|
31.8V
|
|
Maximum power current-Imp(A)
|
8.79A
|
8.84A
|
8.92A
|
9.02A
|
9.12A
|
|
Module Efficiency(%)
|
16.60 %
|
16.80%
|
17.10%
|
17.40%
|
17.83%
|
MECHANICAL DATA
|
Solar Cells
|
Polycrystalline 156.75x156.75mm, 5 Bus Bars
|
|
Cell configuration
|
60 Cells (6x10)
|
|
Module dimensions
|
1640x992x35mm
|
|
Weight
|
19KGS
|
|
Front Cover
|
3.2mm Tempered Glass
|
|
Frame Material
|
Anodized Aluminum Alloy
|
|
J-Box
|
IP65 or IP67, 3 Diodes
|
|
Cable
|
4mm2(IEC)/12AWG(UL),900mm
|
|
Connectors
|
MC4 or MC4 Comparable
|
|
Standard Packaging
|
30pcs/pallet
|
TEMPERATURE & MAXIMUM RATINGS
PACKAGING CONFIGURATION
20GP
360pcs
30pcs/pallet
12pallets
