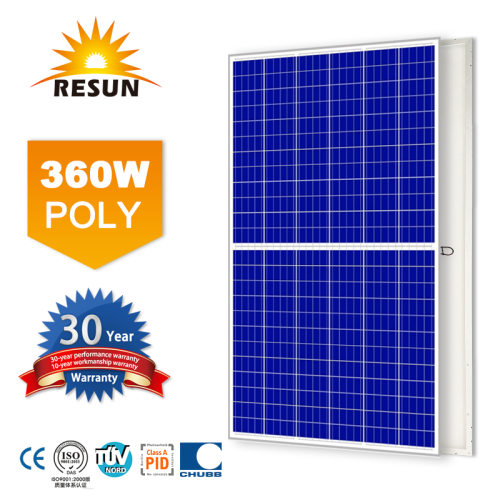

360W Poly Half-cell solar panels for home system
-
USD0.24100000-199999 Others
-
USD0.22≥200000 Others
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 100000 Others
- Min. Order:
- 100000 Others
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 1GW/Year |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| HS Code: | 85414020000 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI,Ningbo |
Product Overview
360W Poly Half-cell solar panels for home system
Half-cell high-efficiency solar panel is cutting cells One divides into two,it could reduce thermal resistance,improve output power 5-10W;it could meet 1500V whole system voltage design demand and reduce whole system cost 10%. In comparison to full solar cell modules,this one cells subfissure,power attenuation and sunshine occlusion is more lower;and excellent high temperature character. It is the best choice for large ground power station,Ecological agriculture fishery project and Distributed beach project.
Product Details
* Poly Solar Panel is High Efficiency Solar Panel for Solar Systems
* 335-360W Power output
* Higher energy generation and lower power loss
* Anti hot SPOT&PID free
* Less shading effect
* Applicable for 1500V system, lower system cost
* Entire module certified to withstand high wind loads(2400Pascal) and snow loads (5400 Pascal)
Specification
ELECTRICAL DATA(NOCT)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
|
Rated Power in Watts-Pmax(wp)
|
335W
|
340W
|
345W
|
350W
|
355W
|
360W
|
|
Open Circuit Voltage-Voc(V)
|
47.30V
|
47.5V
|
47.6V
|
47.70V
|
47.80V
|
47.90V
|
|
Short Circuit Current-Isc(A)
|
9.13A
|
9.22A
|
9.32A
|
9.42A
|
9.52A
|
9.62A
|
|
Maximum Power Voltage-Vmp(V)
|
37.99V
|
38.2V
|
38.30V
|
38.40V
|
38.5V
|
38.60V
|
|
Maximum power current-Imp(A)
|
8.82A
|
8.90A
|
9.00A
|
9.11A
|
9.22A
|
9.32A
|
|
Module Efficiency(%)
|
17.00%
|
17.26%
|
17.51%
|
17.77%
|
18.02%
|
18.27%
|
MECHANICAL DATA
|
Solar Cells
|
Poly Half-Cell 156.75x78.37mm, 5 Bus bars
|
|
Cell configuration
|
144 cells (6x24)
|
|
Module dimensions
|
1986x992x40mm
|
|
Weight
|
23KGS
|
|
Front Cover
|
3.2mm Tempered Glass
|
|
Frame Material
|
Anodized Aluminum Alloy
|
|
J-Box
|
IP68, 3 Diodes
|
|
Cable
|
4mm2(IEC)/12AWG(UL),1000mm
|
|
Connectors
|
MC4 or MC4 Comparable
|
|
Standard Packaging
|
26pcs/pallet
|
TEMPERATURE & MAXIMUM RATINGS
PACKAGING CONFIGURATION
20GP
260pcs
26pcs/pallet
10pallets
Resun Solar was founded in 2007, specializes in providing high quality and highly cost-effective solar modules with 1GW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and seven office and warehouses, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Sales and Service Network
Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
