Mini solar panels 80w roof home

USD0.32

≥10000 Others

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 10000 Others

Min. Order:: 10000 Others

Delivery Time:: 15 Days

Transportation:: Ocean

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	1GW/Year
Supply Ability:	10containers/Day
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001
HS Code:	85414020000
Transportation:	Ocean
Port:	Shanghai,Ningbo

Product Description

Product Overview

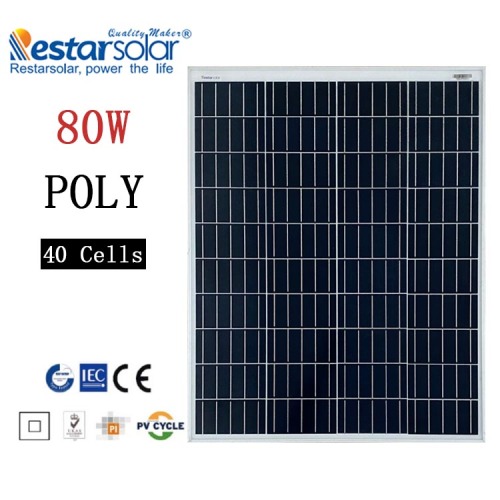

RTM080P

RTM080P is a robust solar panel with 40 solar cells. These solar panels can be used for on-grid solar applications.Our meticulous design and production techniques ensure a high-yield, long-term performance for every solar panel produced. Our rigorous quality control and in-house testing facilities guarantee Restar's solar panels meet the highest quality standards possible. Choose our solar panels , we'll not let you down.

Product Details

B 63oo3v Dg7 Yjxp1b6h9

9ykhl03 Sl C Fykcj G Pt

Specification

ELECTRICAL DATA(NOCT)

STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3

Rated Power in Watts-Pmax(wp)	80W
Open Circuit Voltage-Voc(V)	23.70V
Short Circuit Current-Isc(A)	4.42A
Maximum Power Voltage-Vmp(V)	19.60V
Maximum power current-Imp(A)	4.08A
Module Efficiency(%)	13.88%

ELECTRICAL DATA(NOCT)

NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.

Maximum Power-Pmax (Wp)	59.70W
Open Circuit Voltage-Voc (V)	22.23V
Short Circuit Current-lsc (A)	3.57A
Maximum Power Voltage-Vmp(V)	18.23V
Maximum Power Current-mp(A)	3.27A

MECHANICAL DATA

Solar Cells	Poly-crystalline 156x78mm 4 or 5 Bus bars
Cell configuration	40cells(4x10)
Module dimensions	860x670x35 mm
Weight	6.9KGS
Front Cover	3.2mm Tempered Glass
Frame Material	Anodized Aluminum Alloy
J-Box	IP65 or IP67, 1 Diodes
Cable	2.5mm2(IEC)/12AWG(UL),900mm
Connectors	MC4 or MC4 Comparable
Standard Packaging	5pcs/suite box

TEMPERATURE & MAXIMUM RATINGS

Nominal Operating Cell Temperature (NOCT)	45°C±2°C
Temperature Coefficient of Voc	-0.32%/°C
Temperature Coefficient of lsc	0.05%/°C
Temperature Cofficient of Pmax	-0.39%/°C
Operational Temperature	-40~+85°C
Maximum System Voltage	1000V(IEC)600V(UL)
Max Series Fuse Rating	10A
Limiting Reverse Current	10A

Company Profile

Resun Solar specializes in providing high quality and highly cost-effective solar panels. With its 2 manufacturing factories accredited by ISO9001 & 14001, full ranges of Resun panels are certified by TUV IEC61215,IEC61730,VDE, CEC,EMC,LVD,CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.

Founded in 2007 and with 600MW production capacity , Resun Solar has lots of experiences on medium and big size Ground projects based on MW and small individual rooftop system based on KW, and Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia.

Insisting on its goal to convenient customer and build win-win cooperation with the good relationship with different solar system components partners, Resun Solar has built an industry alliance to supply solar power system integration solutions and solar application products.

3 Our Workshop

4 Certification

Sales and Service Network

Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
