320w-360w Solar PV panels
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1000000 Others
- Min. Order:
- 1000000 Others
- Delivery Time:
- 10 Days
- Transportation:
- Ocean
- Port:
- Shanghai, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 10containers/Day |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| HS Code: | 85414020000 |
| Transportation: | Ocean |
| Port: | Shanghai,Ningbo |
Product Overview

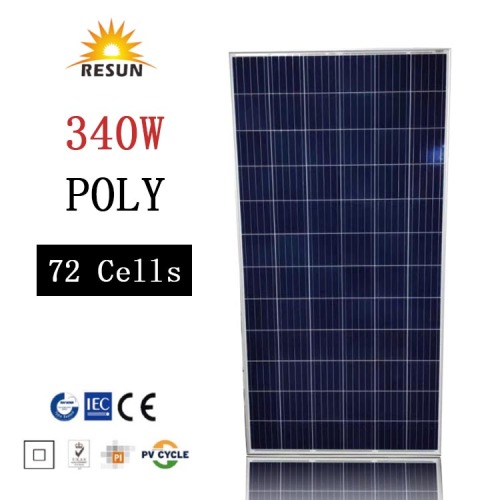

RS6S-P
RS6S-P is a robust solar panel with 72 solar cells. These solar panels can be used for on-grid solar applications.Our meticulous design and production techniques ensure a high-yield,long-term performance for every solar panel produced. Our rigorous quality control and in-house testing facilities guarantee Resun Solar's solar modules meet the highest quality standards possible.
Product Details
Specification
ELECTRICAL DATA(NOCT)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
ELECTRICAL DATA(NOCT)
NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.
MECHANICAL DATA
|
Solar Cells
|
Polycrystalline 156 x 156mm, 5 Bus bars
|
|
Cell configuration
|
72 Cells (6x12)
|
|
Module dimensions
|
1956 x 992 x40mm
|
|
Weight
|
22KGS
|
|
Front Cover
|
3.2mm Tempered Glass
|
|
Frame Material
|
Anodized Aluminum Alloy
|
|
J-Box
|
IP67
|
|
Cable
|
4mm2(IEC)/12AWG(UL).900mm
|
|
Connectors
|
MC4 or MC4 Comparable
|
|
Standard Packaging
|
26pcs/pallet
|
TEMPERATURE & MAXIMUM RATINGS
|
Nominal Operating Cell Temperature (NOCT)
|
45°C±2°C
|
|
Temperature Coefficient of Voc
|
-0.32%/°C
|
|
Temperature Coefficient of lsc
|
0.05%/°C
|
|
Temperature Cofficient of Pmax
|
-0.39%/°C
|
|
Operational Temperature
|
-40~+85°C
|
|
Maximum System Voltage
|
1000V(IEC)600V(UL)
|
|
Max Series Fuse Rating
|
15A
|
|
Limiting Reverse Current
|
15A
|
PACKAGING CONFIGURATION
|
|
20GP
|
40HQ
|
|
Number of modules per container
|
260pcs
|
696pcs
|
|
Package
|
26pcs/pallet
|
26pcs/pallet, 2pcs/carton
|
|
Package Number
|
10pallets
|
24pallets+36cartons
|
Resun Solar Energy Co., Ltd was founded in 2007, engaged in developing and manufacturing PV solar products with capcity 1GW/Year. The series of the solar energy products are of high quality, easy installation, long life time, free maintenance, low operation cost and environmental friendless.
Certifications
Sales and Service Network
Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
