Poly 160w Inmetro solar panel
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 20 Piece/Pieces
- Min. Order:
- 20 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 10containers/Day |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 85414020 |
| Transportation: | Ocean |
| Port: | SHANGHAI,, |

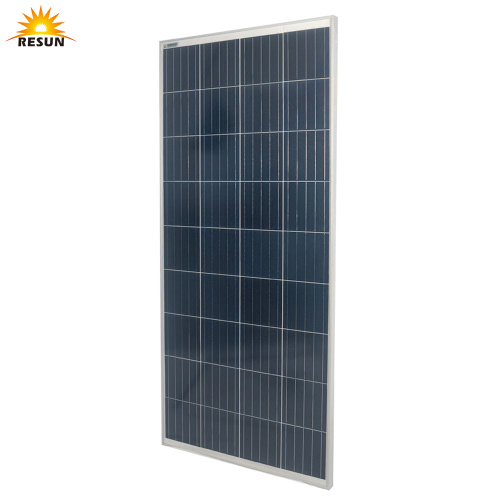

160w poly with Inmetro
RS6E-160P is a robust solar module with 36 solar cells.These modules can be used for on-grid,off-grid solar applications.Our meticulous design and production techniques ensure a high-yield,long-term performance for every module produced.Our rigorous quality control and in-house testing facilities guarantee Resun Solar’s modules meet the highest quality standards possible.
| Rated power | 160W |
| Open circuit voltage | 23.6V |
| Short circuit current | 9.00A |
| Maximum power voltage | 18.32V |
| Maximum power current | 8.85A |
| Module efficiency | 16.16% |
| Solar cell | Poly-crystalline,156.75*156.75mm, 5BB |
| Cell configuration | 36cells(4*9) |
| Module size | 1487*666*35mm |
| Weight | 11.5kgs |
| Front cover | 3.2mm tempered glass |
| Frame | Anodized Aluminum Alloy |
| J-BOX | IP67,6 Diodes |
| Cable | 4mm2(IEC), 900mm |
| Connectors | MC4 or MC4 comparable |
| Maximum system voltage | 1000V |
| Max series Fuse rating | 12A |
| Limiting reverse current |
12A |
Sales network covers more than 80 countries with 1GW capacity each year, providing customers with instant after-sales service and an efficient supply-chain.
In order to provide clients with fast quality check and delivery time, so far we have built our overseas warehouses in worldwide European- Poland, Netherlandss, Ukraine, Middle East-Dubai,Saudi Arabi, Africa-Uganda,Nigeria, Morocco, Latin America- Brail, Chile, Columbia ,following this to build convenient global logistic for project needs.
Resun Solar was founded in 2005, specializes in providing high quality and highly cost-effective solar modules, With its 2 manufacturing factories accredited by ISO9001 & 14001 with 1GW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, UL, CE, PID, SEC, CEC, INMETRO, RETIE, DEWA and etc.
Resun Solar has lots of experiences on medium and big size Ground projects based on MW and small individual rooftop system based on KW, and Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and seven office and warehouses, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Insisting on its goal to convenient customer and build win-win cooperation with the good relationship with different solar system components partners, Resun Solar has built an industry alliance to supply solar power system integration solutions and solar application products.
