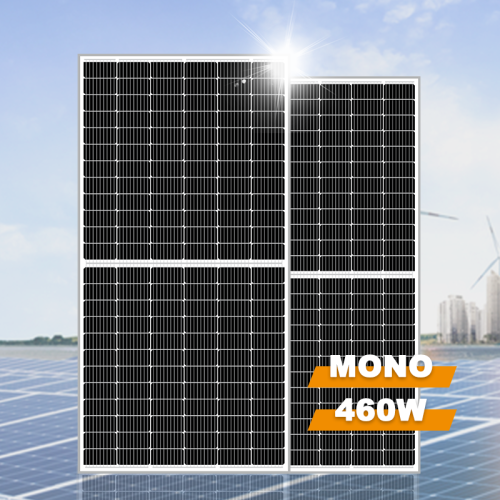

Half-Cell 450W 460W PV Mono Solar Panels
-
$0.28≥31 Piece/Pieces
- Min. Order:
- 31 Piece/Pieces
- Min. Order:
- 31 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- shanghai, ningbo, shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5GW |
| Payment Type: | L/C,T/T,Paypal,Others |
| Incoterm: | FOB,CFR,CIF,EXW |
| HS Code: | 8541430000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | shanghai,ningbo,shenzhen |
Product Overview
RS7I-M HALF-CELL
RS7I-M is a robust solar module with 144 solar cells. These modules can be used for on-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee Restar solar's modules meet the highest quality standards possible.
Product Details
* Mono Solar Panel 450-460W solar power is for solar systems
* High Reliability
* Anti-PID Resistance
* Durability Against Extreme Conditions
* High Efficiency
Multi-busbar technology can reduce the module internal power loss to improve the module conversion efficiency significantly.
Specification
ELECTRICAL DATA(NOCT)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
|
Rated Power in Watts-Pmax(wp)
|
450W
|
455W
|
460W
|
|
Open Circuit Voltage-Voc(V)
|
49.3V
|
49.5V
|
49.7V
|
|
Short Circuit Current-Isc(A)
|
11.6A
|
11.67A
|
11.74A
|
|
Maximum Power Voltage-Vmp(V)
|
41.5V
|
41.7V
|
41.9V
|
|
Maximum power current-Imp(A)
|
10.85A
|
10.91A
|
10.98A
|
|
Module Efficiency(%)
|
20.70%
|
20.93%
|
21.16%
|
MECHANICAL DATA
|
Solar Cells
|
Half-cell Mono 166x83mm,
|
|
Cell configuration
|
144 Cells (6x24)
|
|
Module dimensions
|
2094mmx1038mmx35mm
|
|
Weight
|
26KGS
|
|
Front Cover
|
3.2mm Tempered Glass
|
|
Frame Material
|
Anodized Aluminum Alloy
|
|
J-Box
|
IP68, 3Diodes
|
|
Cable
|
4mm2(IEC)/12AWG(UL),300mm or customized
|
|
Connectors
|
MC4 or MC4 Comparable
|
|
Standard Packaging
|
31pcs/pallet
|
TEMPERATURE & MAXIMUM RATINGS
|
Nominal Operating Cell Temperature (NOCT)
|
45°C±2°C
|
|
Temperature Coefficient of Voc
|
-0.32%/°C
|
|
Temperature Coefficient of lsc
|
0.05%/°C
|
|
Temperature Cofficient of Pmax
|
-0.39%/°C
|
|
Operational Temperature
|
-40~+85°C
|
|
Maximum System Voltage
|
1500V(IEC)
|
|
Max Series Fuse Rating
|
20A
|
PACKAGING CONFIGURATION
|
Container Size
|
40HQ
|
|
Number of modules per container
|
726 pcs
|
|
Package
|
31pcs/pallet, 2pcs/carton
|
|
Package Number
|
22pallets+22cartons
|
Resun Solar was founded in 2007, specializes in providing high quality and highly cost-effective solar modules with 1GW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and seven office and warehouses, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Sales and Service Network
Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
