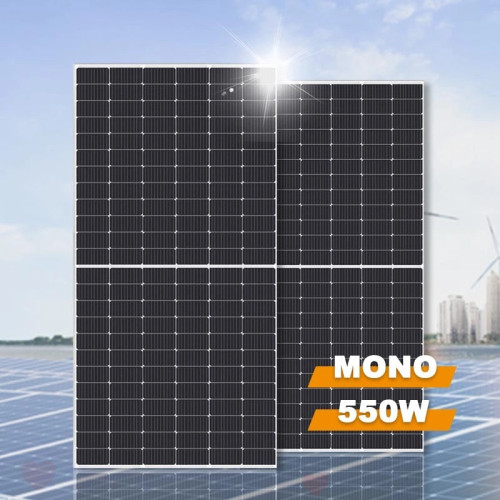

550W Mono crystalline photovoltaic solar module
-
$0.23≥1000000 Others
- Min. Order:
- 1000000 Watt/Watts
- Min. Order:
- 1000000 Watt/Watts
- Transportation:
- Ocean
- Port:
- SHANGHAI, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 10containers/Day |
| Payment Type: | L/C,Paypal,T/T |
| Incoterm: | FOB,FOB,EXW,CFR,CIF |
| Certificate: | ISO9001 |
| HS Code: | 8541402000 |
| Transportation: | Ocean |
| Port: | SHANGHAI,Ningbo |
Product Overview
RT8I-550M
RT8I-550M is a robust mono solar panel with 144 solar cells. These modules can be used for on-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee Restar solar's modules meet the highest quality standards possible. Mono Solar Panel is one kind of Solar Panels and also used for Solar Systems
Product Details
Specification
ELECTRICAL DATA(STC)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
|
Rated Power in Watts-Pmax(wp)
|
535W
|
540W
|
545W
|
550W
|
555W
|
560W
|
|
Open Circuit Voltage-Voc(V)
|
49.06V
|
49.80V
|
50.00V
|
50.02V
|
50.40V
|
13.99V
|
|
Short Circuit Current-Isc(A)
|
13.69A
|
13.75A
|
13.81A
|
13.87A
|
13.93A
|
13.99A
|
|
Maximum Power Voltage-Vmp(V)
|
41.01V
|
41.60V
|
41.80V
|
42.00V
|
42.20V
|
42.40V
|
|
Maximum power current-Imp(A)
|
12.93A
|
12.99A
|
13.04A
|
13.10A
|
13.16A
|
13.21A
|
|
Module Efficiency(%)
|
20.69%
|
20.89%
|
21.08%
|
21.27%
|
21.47%
|
21.66%
|
ELECTRICAL DATA(NOCT)
NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.
|
Maximum Power-Pmax (Wp)
|
405W
|
408W
|
412W
|
416W
|
420W
|
424W
|
|
Open Circuit Voltage-Voc(V)
|
47.40V
|
47.60V
|
47.80V
|
48.0V
|
48.20V
|
48.40V
|
|
Short Circuit Current-Isc(A)
|
11.04A
|
11.09A
|
11.13A
|
11.18A
|
11.23A
|
11.28A
|
|
Maximum Power Voltage-Vmp(V)
|
38.80V
|
39.00V
|
39.20V
|
39.40V
|
39.60V
|
39.80V
|
|
Maximum power current-Imp(A)
|
10.42A
|
10.47A
|
10.51A
|
10.56A
|
10.61A
|
10.65A
|
MECHANICAL DATA
TEMPERATURE & MAXIMUM RATINGS
|
Nominal Operating Cell Temperature (NOCT)
|
45°C±2°C
|
|
Temperature Coefficient of Voc
|
-0.32%/°C
|
|
Temperature Coefficient of lsc
|
0.05%/°C
|
|
Temperature Cofficient of Pmax
|
-0.39%/°C
|
|
Operational Temperature
|
-40~+85°C
|
|
Maximum System Voltage
|
1500V(IEC)
|
|
Max Series Fuse Rating
|
20A
|
PACKAGING CONFIGURATION
Resun Solar Energy Co., Ltd was founded in 2007,engaged in developing and manufacturing photovoltaic solar products with capcity 1GW/Year. The series of the solar-energy products are of high quality, easy installation, long life time, free maintenance, low operation cost and environmental friendless.
Sales and Service Network
Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
