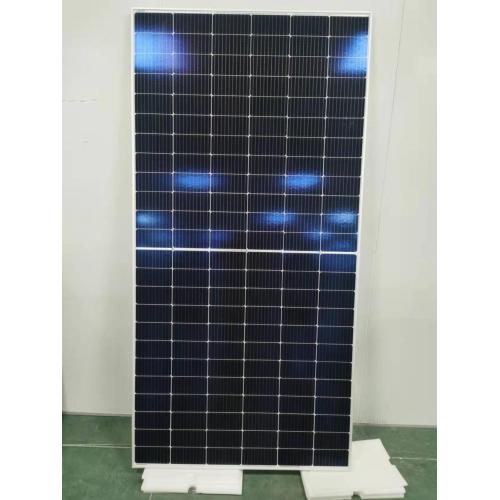

550W Mono half-cell high efficiency solar panel
-
$0.25≥620 Piece/Pieces
- Min. Order:
- 620 Piece/Pieces
- Min. Order:
- 620 Piece/Pieces
- Transportation:
- Ocean, Air, Land, Express, Others
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 10containers/Day |
| Payment Type: | T/T,L/C,Paypal,Others |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,DDP,DDU,CPT,CIP,DEQ,Express Delivery,DAF,DES,FAS |
| Certificate: | ISO9001 |
| HS Code: | 85414020 |
| Transportation: | Ocean,Air,Land,Express,Others |
| Port: | SHANGHAI |
Product Overview
Photovoltaic 550W HC Mono solar panels factory direct
RS8I-M(535-560) is a robust solar module with 144 solar cells. These modules can be used for on-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee Restar solar's modules meet the highest quality standards possible.
Product Details
*Mono Solar Panel 550W solar power is for solar systems
* 536-560W Power output
* High module conversion efficiency (up to 21.66%), through superior manufacturing technology
* Guaranteed 0-+5W positive power output tolerance ensures high reliability
loads(5400pa)
Specification
ELECTRICAL DATA(NOCT)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
|
Rated Power in Watts-Pmax(wp)
|
535W
|
540W
|
545W
|
550W
|
555W
|
560W
|
|
Open Circuit Voltage-Voc(V)
|
49.60V
|
49.80V
|
50.00V
|
50.02V
|
50.40V
|
50.60V
|
|
Short Circuit Current-Isc(A)
|
13.69A
|
13.75A
|
13.81A
|
13.87A
|
13.93A
|
13.99A
|
|
Maximum Power Voltage-Vmp(V)
|
41.40V
|
41.60V
|
41.80V
|
42.00V
|
42.20V
|
42.40V
|
|
Maximum power current-Imp(A)
|
12.93A
|
12.99A
|
13.04A
|
13.10A
|
13.16A
|
13.21A
|
|
Module Efficiency(%)
|
20.69%
|
20.89%
|
21.08%
|
21.27%
|
21.47%
|
21.66%
|
MECHANICAL DATA
|
Solar Cells
|
Mono-crystalline 182x91mm
|
|
Cell configuration
|
144 cells (6x24)
|
|
Module dimensions
|
2279x1134x35mm
|
|
Weight
|
29KGS
|
|
Front Cover
|
3.2mm Tempered Glass
|
|
Frame Material
|
Anodized Aluminum Alloy
|
|
J-Box
|
IP68
|
|
Cable
|
4mm2(IEC)/12AWG(UL),900mm
|
|
Connectors
|
MC4 or MC4 Comparable
|
|
Standard Packaging
|
30pcs/pallet
|
TEMPERATURE & MAXIMUM RATINGS
|
Nominal Operating Cell Temperature (NOCT)
|
45°C±2°C
|
|
Temperature Coefficient of Voc
|
-0.32%/°C
|
|
Temperature Coefficient of lsc
|
0.05%/°C
|
|
Temperature Cofficient of Pmax
|
-0.39%/°C
|
|
Operational Temperature
|
-40~+85°C
|
|
Maximum System Voltage
|
1500V(IEC)
|
|
Max Series Fuse Rating
|
20A
|
PACKAGING CONFIGURATION
|
|
20GP | 40GP |
40HQ
|
|
Number of modules per container
|
150pcs | 300pcs |
600 pcs
|
|
Piece/Pallet
|
30pcs | 30pcs |
30pcs
|
|
Pallet/Container
|
5 | 10 |
20
|
Resun Solar was founded in 2007, specializes in providing high quality and highly cost-effective solar modules with 1GW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and seven office and warehouses, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
