315W solar module 60 cells mono solar panel
-
USD0.26100000-199999 Others
-
USD0.24≥200000 Others
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 100000 Others
- Min. Order:
- 100000 Others
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 1GW/Year |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| HS Code: | 85414020000 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI,Ningbo |
Product Overview

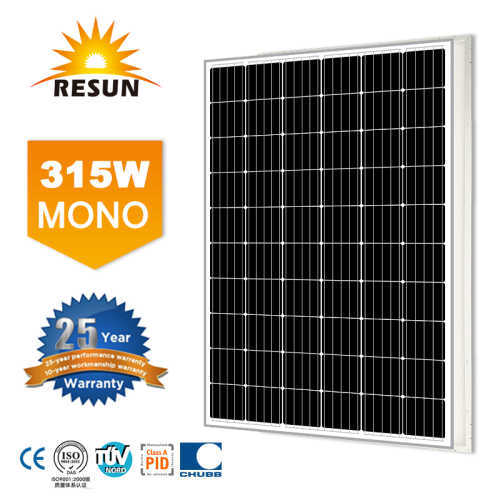

315W solar module 60 cells mono solar panel
RS6C-M is a robust solar module with 60 PERC solar cells. These modules can be used for on grid solar applications. Our meticulous design and production techniques ensure a high yield,long-term performance for every module produced. Our rigorous quality control and in house testing facilities guarantee Resun Solar’s modules meet the highest quality standards possible.
Product Details
* 300-320W Power output
* High module conversion efficiency (up to 19.67%),through superior manufacturing technology.
* Guaranteed 0-+5W positive power output tolerance ensures high reliability.
* Anti-reflective, hydrophobic coating improves light absorption and reduces surface dust.
* Excellent performance under low light environments (mornings,evenings and cloudy days.)
* Suitable for harsh environments,such as coasts,deserts and lakes withstand high level of wind loads(2400Pa) and snow loads (5400 Pa)
Specification
ELECTRICAL DATA(NOCT)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
|
Rated Power in Watts-Pmax(wp)
|
300W
|
305W
|
310W
|
315W
|
320W
|
|
Open Circuit Voltage-Voc(V)
|
39.85V
|
40.08V
|
40.48V
|
40.59V
|
40.94V
|
|
Short Circuit Current-Isc(A)
|
9.62A
|
9.73A
|
9.77A
|
9.88A
|
9.94A
|
|
Maximum Power Voltage-Vmp(V)
|
32.90V
|
32.95V
|
33.34V
|
33.58V
|
33.80V
|
|
Maximum power current-Imp(A)
|
9.12A
|
9.27A
|
9.30A
|
9.38A
|
9.47A
|
|
Module Efficiency(%)
|
18.44%
|
18.74%
|
19.05%
|
19.36%
|
19.67%
|
MECHANICAL DATA
|
Solar Cells
|
Monocrystalline 156x156mm, 5 Bus Bars
|
|
Cell configuration
|
60 Cells (6x10)
|
|
Module dimensions
|
1640x992x35mm
|
|
Weight
|
19KGS
|
|
Front Cover
|
3.2mm Tempered Glass
|
|
Frame Material
|
Anodized Aluminum Alloy
|
|
J-Box
|
IP67
|
|
Cable
|
4mm2(IEC)/12AWG(UL),900mm
|
|
Connectors
|
MC4 or MC4 Comparable
|
|
Standard Packaging
|
30pcs/pallet
|
TEMPERATURE & MAXIMUM RATINGS
PACKAGING CONFIGURATION
20GP
360pcs
30pcs/pallet
12pallets
Resun Solar was founded in 2007, specializes in providing high quality and highly cost-effective solar modules with 1GW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and seven office and warehouses, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Sales and Service Network
Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
