Big module Mono 9BB 440W portable solar panel
-
USD0.24100000-199999 Others
-
USD0.22≥200000 Others
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 100000 Others
- Min. Order:
- 100000 Others
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 1GW/Year |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| HS Code: | 85414020000 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI,Ningbo |
Product Overview

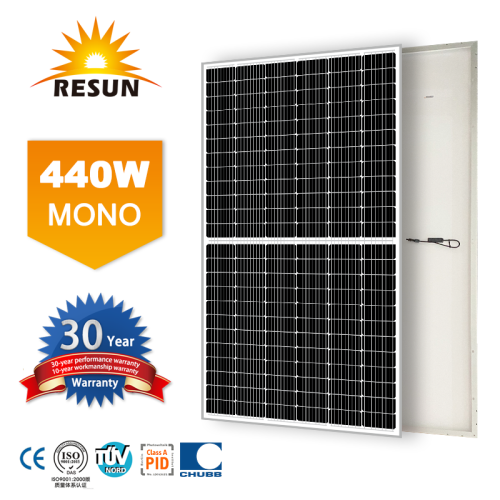

Big module Mono 9BB 440W portable solar panel
RS7I-M HALF-CELL series is produced with high efficiency multi-busbar cells, which can reduce the module internal power loss to improve its conversion efficiency, as well as lower the failure risk caused by cracks and broken busbar to enhance the module reliability. Combined with half-cell technology, the module is highly resistant to hot-spot crisis caused by
shadow effect.
Product Details
* Mono Solar Panel 440W solar power is for solar systems
Multi-busbar technology can effectively reduce the reliability risk caused by cells cracks and broken busbar.
* Anti-PID Resistance
* Durability Against Extreme Conditions
* High Efficiency
Specification
ELECTRICAL DATA(NOCT)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
|
Rated Power in Watts-Pmax(wp)
|
425W
|
430W
|
435W
|
440W
|
445W
|
450W
|
|
Open Circuit Voltage-Voc(V)
|
48.3V
|
48.5V
|
10.57A
|
48.9V
|
49.1V
|
49.3V
|
|
Short Circuit Current-Isc(A)
|
11.23A
|
11.31A
|
11.39A
|
11.46A
|
11.53A
|
11.6A
|
|
Maximum Power Voltage-Vmp(V)
|
40.5V
|
40.7V
|
40.9V
|
41.1V
|
41.3V
|
41.5V
|
|
Maximum power current-Imp(A)
|
10.5A
|
10.57A
|
10.64A
|
10.71A
|
10.78A
|
10.85A
|
|
Module Efficiency(%)
|
19.24%
|
10.57A
|
19.69%
|
19.91%
|
20.14%
|
20.37%
|
MECHANICAL DATA
|
Solar Cells
|
Half-Cell Mono 166x83mm, 9 Bus bars
|
|
Cell configuration
|
144 cells (6x24)
|
|
Module dimensions
|
2100x1052x40mm
|
|
Weight
|
25KGS
|
|
Front Cover
|
3.2mm Tempered Glass
|
|
Frame Material
|
Anodized Aluminum Alloy
|
|
J-Box
|
IP67 or IP68, 3 Diodes
|
|
Cable
|
4mm2(IEC)/12AWG(UL),900mm
|
|
Connectors
|
MC4 or MC4 Comparable
|
|
Standard Packaging
|
27pcs/pallet
|
TEMPERATURE & MAXIMUM RATINGS
PACKAGING CONFIGURATION
Resun Solar was founded in 2007, specializes in providing high quality and highly cost-effective solar modules with 1GW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.
Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and seven office and warehouses, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Sales and Service Network
Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
