Product Description

Product Overview

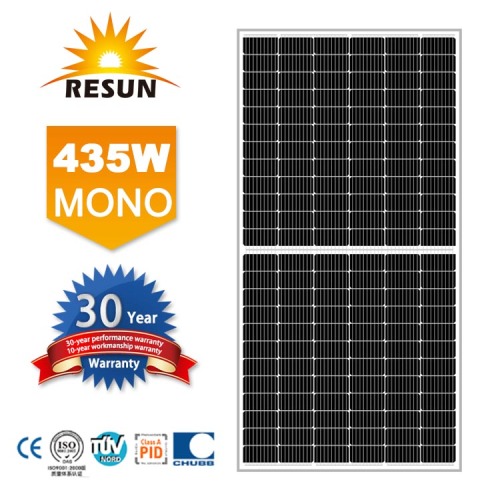

RS7I-M

144 Cells Solar Panels RS7I-M HALF-CELL series is produced with high efficiency multi-busbar cells, which can reduce the solar panel internal power loss to improve its conversion efficiency, as well as lower the failure risk caused by cracks and broken busbar to enhance the solar module's reliability. Combined with half-cell technology, the solar panel is highly resistant to hot-spot crisis caused by shadow effect.

Product Details

$8{1XJ}68@_{5(EL~8FFTM1C$

SV`M})8XS4CWX]W)IP8T]I2

Specification

ELECTRICAL DATA(NOCT)

STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3

Rated Power in Watts-Pmax(wp)	425W	430W	435W	440W	445W	450W
Open Circuit Voltage-Voc(V)	48.3V	48.5V	48.7V	48.9V	49.1V	49.3V
Short Circuit Current-Isc(A)	11.23A	11.31A	11.39A	11.46A	11.53A	11.6A
Maximum Power Voltage-Vmp(V)	40.5V	40.7V	40.9V	41.1V	41.3V	41.5V
Maximum power current-Imp(A)	10.5A	10.57A	10.64A	10.71A	10.78A	10.85A
Module Efficiency(%)	19.24%	19.46%	19.69%	19.91%	20.14%	20.37%

ELECTRICAL DATA(NOCT)

NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.

Maximum Power-Pmax (Wp)	317.4W	321.1W	324.9W	328.6W	332.3W	336.1W
Open Circuit Voltage-Voc(V)	45.3V	45.5V	45.7V	45.8V	46.0V	46.2V
Short Circuit Current-Isc(A)	9.08A	9.15A	9.21A	9.27A	9.33A	9.38A
Maximum Power Voltage-Vmp(V)	37.7V	37.9V	38.1V	38.3V	38.5V	38.6V
Maximum power current-Imp(A)	8.42A	8.47A	8.53A	8.59A	8.64A	8.7A

MECHANICAL DATA

Solar Cells	Mono Half-Cell 166x83mm, 9 Bus bars
Cell configuration	144 Cells (6x24)
Module dimensions	2100x1052x40mm
Weight	25KGS
Front Cover	3.2mm Tempered Glass
Frame Material	Anodized Aluminum Alloy
J-Box	IP68, 3 Diodes
Cable	4mm2(IEC)/12AWG(UL),300mm
Connectors	MC4 or MC4 Comparable
Standard Packaging	27pcs/pallet

TEMPERATURE & MAXIMUM RATINGS

Nominal Operating Cell Temperature (NOCT)	45°C±2°C
Temperature Coefficient of Voc	-0.32%/°C
Temperature Coefficient of lsc	0.05%/°C
Temperature Cofficient of Pmax	-0.39%/°C
Operational Temperature	-40~+85°C
Maximum System Voltage	1500V(IEC)
Max Series Fuse Rating	20A

PACKAGING CONFIGURATION

	40HQ
Number of modules per container	616pcs
Package	27pcs/pallet, 2pcs/carton
Package Number	22pallets + 11cartons

Company Profile

Resun Solar Energy Co., Ltd was founded in 2007,engaged in developing and manufacturing PV solar products with capcity 1GW/Year. The series of the solar energy products are of high quality, easy installation, long life time, free maintenance, low operation cost and environmental friendless.

3 Our Workshop

4 Certification

Sales and Service Network

Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
