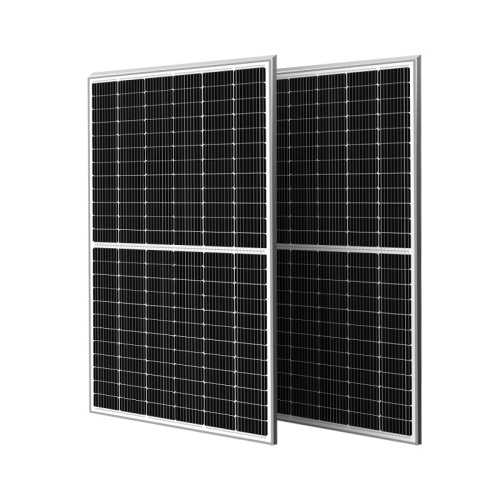

Half-cell Series RS8I-M 550-575W Topcon (N-TYPE) Solar Panel
- Transportation:
- Ocean, Air, Express, Land, 铁路
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 3GW/year |
| Supply Ability: | 3GW/year |
| Payment Type: | L/C,T/T,D/P,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,CIP,Express Delivery |
| Certificate: | ISO9001 |
| HS Code: | 8541430000 |
| Transportation: | Ocean,Air,Express,Land,铁路 |
| Port: | Shanghai |
550-575W Topcon (N-TYPE) Solar Panel
1.High module conversion efficiency(up to 22.26%)
2.Nominal maximum power(Pmax): 575W
3.Certification: CE, TUV, IEC, etc
550-575W Topcon (N-TYPE) Solar Panel
1.STC: lrradiance 1000W/m2,Module temperature 25,AM=1.5
2.Nominal 24V DC standard output.
3.High efficiency, good quality.
4.High transmission tempered glass.
5.TPT imported from Krempel, Germany
6.Rugged design to withstands high wind pressure and snow load, easy installation.
7.Aesthetic appearance.
8.Design to meet unique demand of customers.
9.25 years module output warranty.
10.Built-in diode prevents reverse charging.
550-575W Topcon (N-TYPE) Solar Panel
Electrical Data(STC)
Rated Power In Watts-Pmax(Wp)
Open Circuit Voltage-Voc(V)
STC: irradiance 1000W/m², component temperature 25°C, Air Mass AM1.5 according to EN 60904-3
550W
555W
560W
565W
570W
575W
49.90
49.98
50.05
50.20
50.35
50.50
Short-circuit current (Isc )
14.00
14.03
14.07
14.14
14.21
14.28
Maximum Power Voltage-Vmp(V)
41.96
42.06
42.12
42.26
42.42
42.57
Maximum Power Current-Imp(A)
13.11
13.19
13.30
13.37
13.44
13.51
Module Efficiency
21.28%
21.48%
21.67%
21.87%
22.07%
22.26%
Electrical Data(NOCT)
|
Rated Power In Watts-Pmax(Wp) |
416W | 420W | 424W | 428W |
432W |
436W |
|
Open Circuit Voltage-Voc(V) |
46.68 |
46.78 |
46.85 | 46.98 | 47.11 |
47.33 |
|
Short-circuit current (Isc ) |
11.17 | 11.20 | 11.24 | 11.28 | 11.32 |
11.36 |
|
Maximum Power Voltage-Vmp(V) |
39.43 | 39.62 | 39.67 | 39.88 | 40.09 |
40.30 |
|
Maximum Power Current-Imp(A) |
10.55 |
10.60 | 10.69 | 10.73 | 10.78 | 10.82 |
Mechanical Data
|
Solar Cells |
Mono N-type 182*91mm,16 BB |
| Cell Configuration |
144cells(6*24) |
|
Module Dimensions |
2279*1134*35mm/30mm |
|
Weight |
28.6kg/27.2kg |
|
Front Cover |
3.2mm Tempered Glass |
|
J-Box |
IP68,3 diodes |
|
Cable |
4mm²(IEC)/12AWG(UL),350mm(+)/450mm(-) or customized length |
|
Connectors |
MC4 or MC4 Compatible |
Temperature & Maximum ratings
|
Nominal Operating Cell Temperature(NOCT) |
45℃±2℃ |
|
Temperature coefficient of Voc |
-0.26%/℃ |
|
Temperature coefficient of Isc |
0.048%/℃ |
|
Temperature coefficient of Pmax |
﹣0.32%/℃ |
|
Operational Temperature |
﹣40~+85℃ |
|
Maximum System Voltage |
1500V(IEC)/1500V(UL) |
|
Max Series Fuse Rating |
25A |
|
Limiting Reverse Current |
25A |
Packaging Configuration
|
31pcs/pallet |
|
2 pallets/double pallet = 62pcs |
|
10double pallets/40HQ = 620pcs |

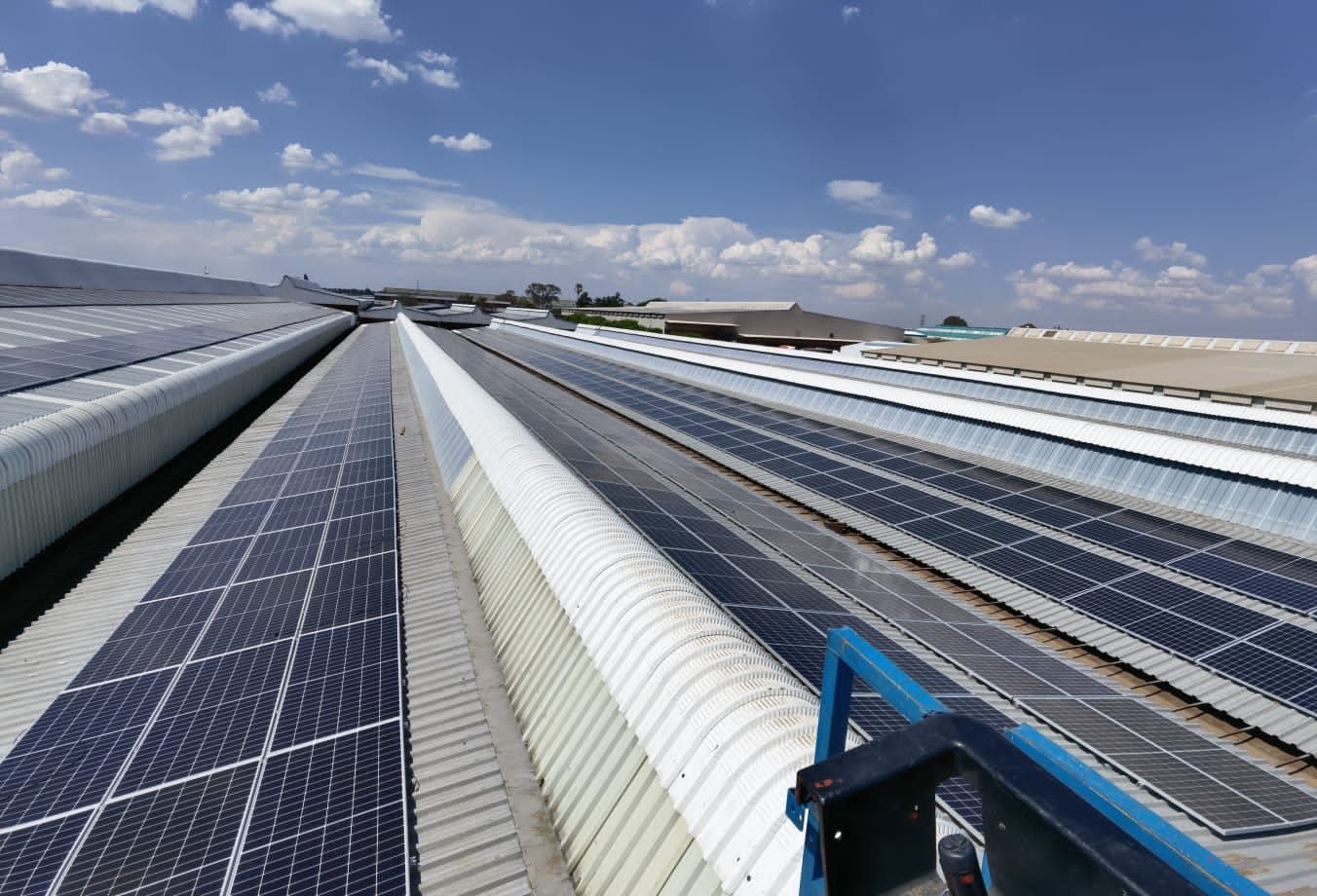

Some our projects in worldwide
Our Exhibitions in worldwide
Solar panels - welfare from the sun. If you have any inquiries, please feel free to contact me.
I hope that wherever the sun shines, the people there can enjoy this welfare. ^_^.
