300W photovoltaic Polycrystalline Solar Panels
-
USD0.25≥1000 Bag/Bags
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1000 Bag/Bags
- Min. Order:
- 1000 Bag/Bags
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 10containers/Day |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 85414020 |
| Transportation: | Ocean |
| Port: | SHANGHAI |

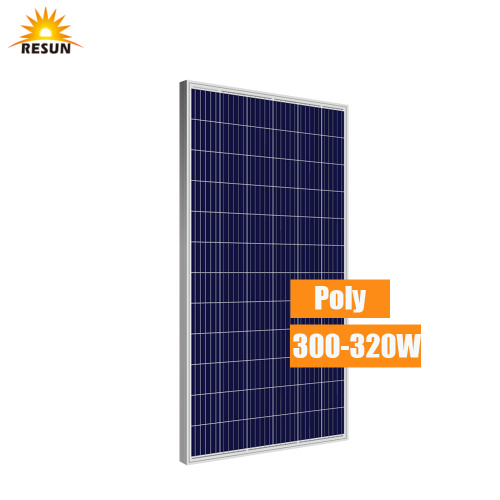

RS6S is a robust solar module with 72 solar cells.These modules can be used for on-grid solar applications.Our meticulous design and production techniques ensure a high-yield,long-term performance for every module produced.Our rigorous uality control and in-house testing facilities guarantee Resun Solar’s modules meet the highest quality standards possible.
|
Standard Test Conditions
|
RS6S
300P
|
RS6S
305P
|
RS6S
310P |
RS6S
315P |
RS6S
320P |
RS6S
325P
|
|
Nominal maximum
|
300W
|
305W
|
310W
|
315W
|
320W
|
325W
|
|
Optimum Operating
|
36.8V
|
36.9V
|
37.1V
|
37.2V
|
37.4V
|
37.6V
|
|
Optimum Operating
|
8.15A
|
8.27A
|
8.36A
|
8.47A
|
8.56A
|
8.64A
|
|
Open Circuit voltage(Voc)
|
44.2V
|
44.3V
|
44.5V
|
44.6V
|
44.9V
|
45.1V
|
|
Short Circuit Current(lsc)
|
8.97A
|
9.09A
|
9.18A
|
9.31A
|
9.41A
|
9.51A
|
|
Module Efficiency
|
15.51%
|
15.77%
|
16.03%
|
16.28%
|
16.54%
|
16.80%
|
|
Operating Temperature
|
-40℃~+85℃
|
|||||
|
Maximum System Voltage
|
1000V(IEC)/600V(UL)
|
|||||
|
Maximum Series Fuse
|
15A
|
|||||
|
Application Classification
|
Class A
|
|||||
|
Power Tolerance
|
0 ~ + 5W
|
|||||

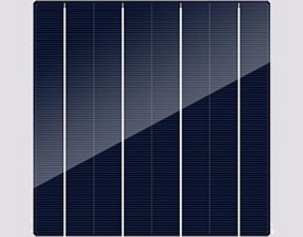

Solar Cell:
>> High module conversion efficiency (up to 18.09%)
>> Positive power output tolerance ensures high reliability
>> Excellent performance under low light environments (mornings,evenings and cloudy days)
>> PID Free Treatment
Glass :
>> Tempered Glass
>> Self-cleaning function
>> Anti-reflective,hydrophobic coating improves light absorption and reduces surface dust
>> Entire module certified to withstand high wind loads and snow loads
>>10 year material and workmanship warranty.

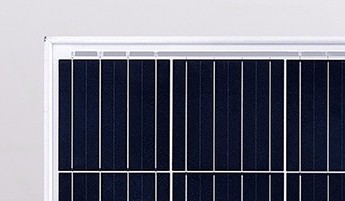

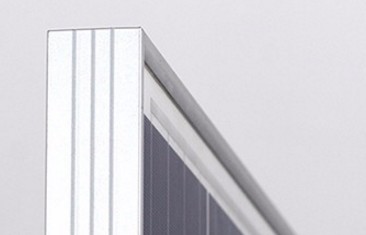

Frame:
Junction Box:
>> IP65 or IP67 Protection Level
>> 4mm2(IEC)/12AWG(UL) Cable
>> MC4 or MC4 Comparable Connectors
>> Heat dissipation Protection function
>> Client special customed requirement is option

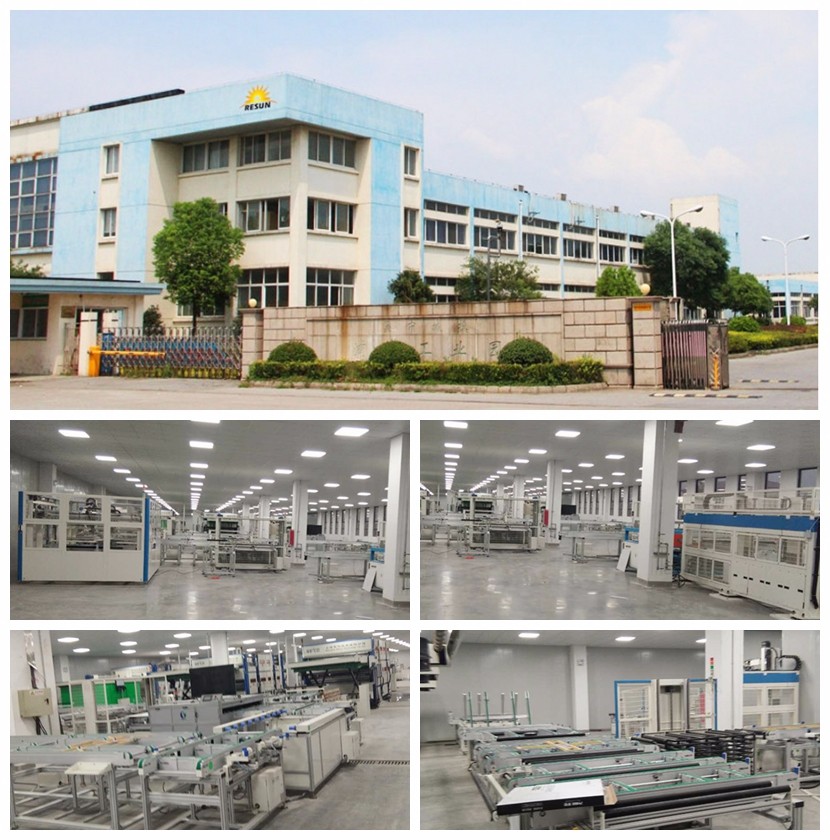

Resun Solar is founded in 2007, specializes in providing high quality and highly cost-effective solar modules, With its 2 manufacturing factories accredited by ISO9001 & 14001 with 500MW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.
Resun Solar has lots of experiences on medium and big size Ground projects based on MW and small individual rooftop system based on KW, and Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and thress office and warehouse in DUBAI, TANZANIA and Uganda, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Insisting on its goal to convenient customer and build win-win cooperation with the good relationship with different solar system components partners, Resun Solar has built an industry alliance to supply solar power system integration solutions and solar application products.
Sales network covers more than 80 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc. Resun Solar team works closely with our customers to provide them with solutions for all their solar needs.
