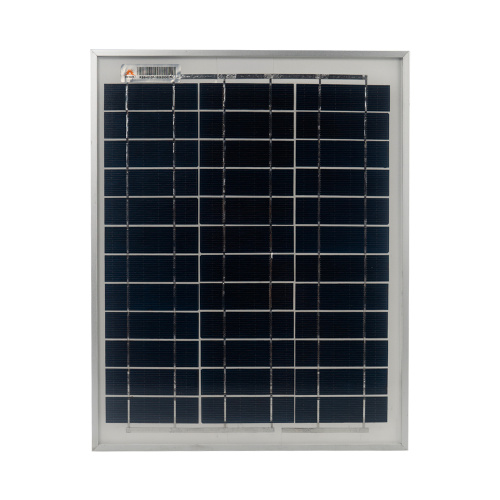

Small 10W Poly Solar Panel
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 20 Piece/Pieces
- Min. Order:
- 20 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1GW/Year |
| Supply Ability: | 10containers/Day |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 85414020 |
| Transportation: | Ocean |
| Port: | SHANGHAI |
Electrical Characteristics
|
Type Silicon Paramete |
RSM010P |
|
|
POLY-crystalline silicon |
||
|
Maximum Power |
Watt |
10W |
|
Production Tolerance |
|
+3% /-3% |
|
Maximum Power voltage |
V |
18 |
|
Maximum Power current |
A |
0.56 |
|
Open circuit voltage |
V |
22 |
|
Short circuit current |
A |
0.70 |
|
Size of module (wide and high) |
345*285*17mm |
|
|
Number of cells |
(3x12)36pcs |
|
|
Weight per piece Kg |
1.08 |
|
|
Type of junction box |
PV junction box |
|
|
Maximum system voltage |
1000V |
|
|
Temperature coefficient of Isc |
+0.05%/°C |
|
|
Temperature coefficient of Voc |
-0.34%/°C |
|
|
Temperature coefficient of power |
-0.5%/°C |
|
|
Temperature coefficient of Im |
+0.05%/°C |
|
|
Temperature coefficient of Vm |
-0.34%/°C |
|
|
NOCT (Nominal operating cell temperature) |
47°C(+2°C) |
|
|
CONVERSION EFFICIENCY |
Cell CONVERSION EFFICIENCY >16.5 |
|
|
Quality guarantee |
10years product warranty and 15 years -10% of power and 30 years -20% of power |
|
Features
|
1. High cell efficiency with quality silicon materials for long term output stability |
|
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures |
|
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance |
|
4. Both Polycrystalline and Monocrystalline |
|
5. Excellent performance in harsh weather |
|
6. Outstanding electrical performance under high temperature and low irradiance |
Quality assurance testing
|
1.Thermal cycling test |
|
2. Thermal shock test |
|
3. Thermal/Freezing and high humidity cycling test |
|
4. Electrical isolation test |
|
5. Hail impact test |
|
6. Mechanical, wind and twist loading test |
|
7. Salt mist test |
|
8. Light and water-exposure test |
|
9. Moist carbon dioxide/sulphur dioxide |
About Us
Resun Solar was founded in 2007, specializes in providing high quality and highly cost-effective solar modules, With its 2 manufacturing factories accredited by ISO9001 & 14001 with 1GW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.
Resun Solar has lots of experiences on medium and big size Ground projects based on MW and small individual rooftop system based on KW, and Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and seven office and warehouses, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Insisting on its goal to convenient customer and build win-win cooperation with the good relationship with different solar system components partners, Resun Solar has built an industry alliance to supply solar power system integration solutions and solar application products.
Packing Pictures
Tuv Certificates
Other Information
|
PAYMENT TERMS |
|
T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time. |
|
|
|
SHIPPING |
|
Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer. |
|
|
|
IMPORTANT INFORMATION |
|
1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications. |
|
2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance |
Thanks for your attention on our company and our goods and looking forward to doing business with you successfully!
