H-APP-8H Automatic Bullnose Machine

$17000.00

1-1 set
$16000.00

≥2 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: shanghai;xiamen;guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	50 Unit/Units per Month 2 sets per day marble bullnose profile wheel
Payment Type:	L/C,T/T,Western Union,MoneyGram,Paypal
Port:	shanghai;xiamen;guangzhou

Product Description

Banner

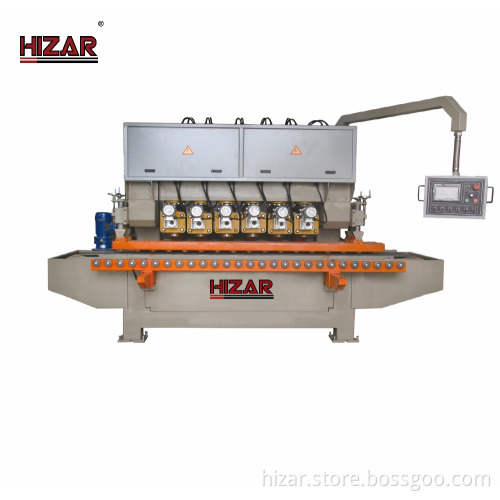

H-APP-8H Automatic bullnose machine

Product Description

H-APP-8H Automatic bullnose machine

This machine is designed for a fully automatic edge profiling for marble , granite , artificial stone,ceramic , glass. It is a continuous processing line that saving the tedious work of changing tools and fixtures of the conventional single head profiling machine.

A new generation of profiling machine greatly reduces the labor cost and improve efficiency that you can not afford to ignore when upgrading your processing equipment. Excellent for mass stone production for orders of short lead time, especially for big project .

1.Easy and convenient tools installing , time saving

2.With a wheel shaft of 30mm diameter, the most common dimension in the market, easy tool matching

3.Simple but precise wheel alignment (tool setting), high accuracy is guaranteed.

4.Constant pressure self compensation system ensures a high quality product with high precision and uniform gloss.

5.Automatic shortage alarming & suspending function to prevent machine from damaging

6.PLC controlling system , touch screen , easy operation, one worker can simply handle a machine.

7.Conveyor self cleaning and stone chip removing system.

8.Special pressing rollers are designed to make sure the workpieces are tightly and accurately fixed and positioned to get a good quality profiling with high precision.

Model	H6E-80B
Max processing width	200mm
Max processing thickness	80mm
Diameter of profile wheel	140-200mm
Diameter of polishing wheel	160-200mm
Main motor power	3kw
Total power	22kw
Water consumption	150L/min
Processing speed	0.2-2.0m/min
Overall dimension	360011002200mm
Total weight	3500KG
