canopy tents 3 x 3

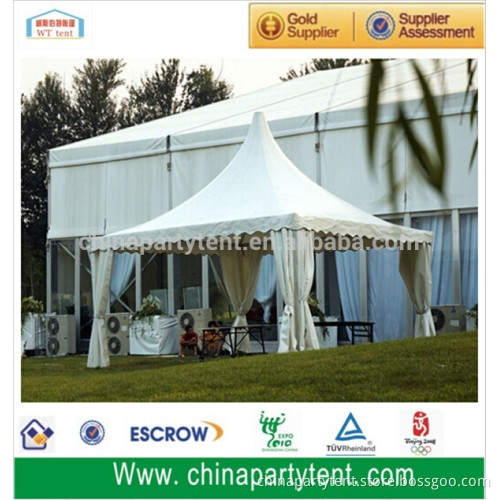

 New  canopy tents 3 x 3              Product Description 20 ft x 20 ft Mobile Pagoda Tent / 2040 PVC Pagoda Party Tent for Sale   1. Party Pagoda Tent Specification

Party pagoda specification	Span width(m)	Eave height(m)	Ridge height(m)	Main frame profile(mm)	Packing  spec (CBM)
CYX-3	3Mx3M	2.3	3.7	48x84x3	0.27
CYX-4	4Mx4M	2.3	4.2	48x84x3	0.48
CYX-5	5Mx5M	2.3	4.7	100x48x3	0.75
CYX-6	6Mx6M	2.5	5.2	122x68x3	1.08
CYX-8	8Mx8M	2.5	5.7	122x68x3	1.92
CYX-10	10Mx10M	2.5	6.2	122x68x3	3.00
Span width: 3m,4m,5m,6m,8m;
Eave height: 2.3m/2.5m;
Ridge height:3.7m~6.2m;

  Party pagoda tent can be used as a single unit or combined by a rain gutter to make a  larger space or a special structure style. Customized size is available.     2. Party Pagoda Tent Frame Part  The Description about Alu alloy(remark: Voluntary Standard GB/T6892-2000)
a:Tensile Strength:260mpa
b:Rigidity: >=14HW
c:Surface Treatment: baking varnish(silver) OR OXIDATION
Steel Fittings Material (remark: Voluntary Standard GB/T6772-2002)
Surface Treatment: Galvanized steel &baking varnish(silver) 3. Party Pagoda Tent Details & Description  (1)Surface material:Double PVC coated polyester textile,waterproof and fireproof
(2)Ridge cloths weight:750G/M2     Surround cloths weight :650G/M2
(3)Inflaming retarding :Internal standard B1
(4)Temperature range:-30-+70°C
(5)Tensile strength warp 2481 N/5cm across warp 2150 N/5cm
(6)Tearing strength warp 188N  across warp 322N
Notice:Withstand wind 8-9 level               Packaging & Shipping Details:
