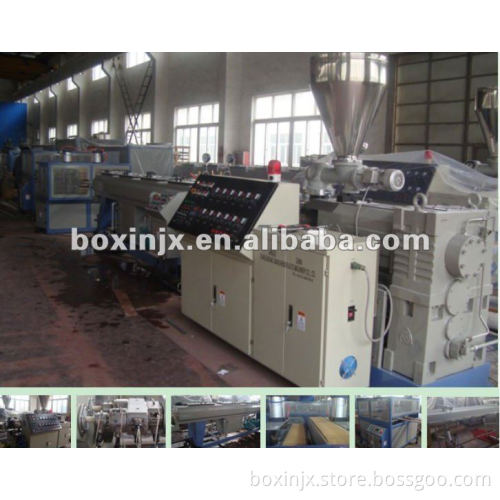

PVC dual-cavity pipe extrusion line

Specifications This line is mainly used for making PVC and U-PVC pipes with various diameters.

  This line is used to make small diameter PVC pipe for electrical wire. It has 2 cavities
and can make 2 pieces of pipe at the same time which can make full use of the
extruder.

Pipe range	20-63mm single	20-63mm dual	75-160mm	110-315mm	315-630mm
Extruder	SJZ51/105	SJZ65/132	SJZ80/156	SJZ80/156	SJZ92/188
Extruder power	18.5kw	37kw	37kw	55kw	110Kw
Extrusion capacity	120kg/h	250kg/h	250kg/h	360kg/h	800kg/h
Max. Production speed	12m/min	10m/min	6 m/min	3 m/min	1.2m/min
