Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications pvc pipe extrusion line

is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used

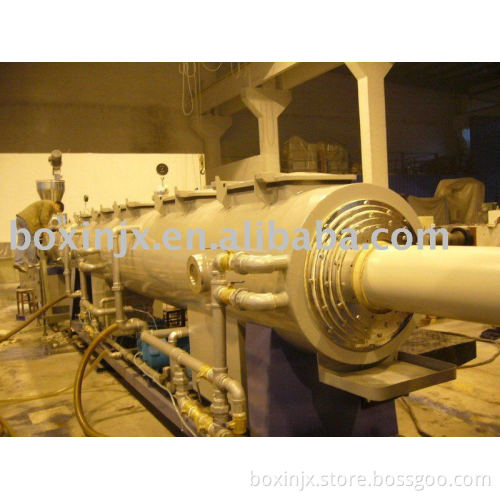

pvc pipe extrusion line 1) Uses SJSA double screw extruding machine as the main machine, assistant machinery: Vacuum spray shape fitting box, three-track hauling off machine, cutting machine, belling machine
2) Can produce pipe in the range: 20 - 630mm
3) Pipe is widely used in water transfer or ejection
4) Using kinds of moulds, this line can produce large range of pipes
5) We can change production line according to requests and provide technology supply if needed

φ20-φ110 PRODUCTION LINE TECHNICAL DATA

( φ 20 φ 110) Mai n Units	Vacuum spray bath	Two caterp ill ars haul-offs	Cut-offs	Stacker
Outli n e deme n sio n	6000 × 830 × 1290	2240 × 1000 × 1600	2000 × 1650 × 2700	5000 × 1200 × 1000
Total power	10 . 05	2 . 2	1 . 5	0
Total Weigh	1000	1000	400	100

φ63-φ250PRODUCTION LINE TECHNICAL DATA

Mai n Units	Vacuum spray bath	Three caterp ill ars haul-offs	Saws	DSLKB2550 DSLKB2550Belling - machi n es
(mm) Outli n e deme n sio n	6440×740×1550	2680×1420×1850	2100×1200×1550	7712×1320×1900
(KW) Total power	12 . 77	4	2 . 2	12 . 09
KG) Total Weigh	1030	2320	1000	2800

φ160-φ400PRODUCTION LINE TECHNICAL DATA

( φ 160 - φ 400) Mai n Units	Vacuum spray bath	Spray bath	Four caterp ill ars haul-offs	Planetary cut-offs	DSLKA4020 Belling - machi n es
mm) Outli n e deme n sio n	6000×1320×1610	6000×1320×1610	2675×1540×1700	3200×1450×2300	7800×2360×2329
(KW) Total power	14.35	4	5.5	6.7	22
(KG) Total Weigh	1480	1150	2600	2400	6000

φ315-φ630 PRODUCTION LINE TECHNICAL DATA

( φ 315 - φ 630) Mai n Units	Vacuum spray bath	Spray bath	Six caterp ill ars haul-offs	Planetary cut-offs	DSLK6330 Belling - machi n es
(mm) Outli n e deme n sio n	6000×1510×1640	6000×1510×1640	4000×2300×2000	3500×1950×2450	8710×3260×2800
(KW) Total power	16.45	5.5	5.5	7.5	36.2
(KG) Total Weigh	2500	1000	2500	3500	6800
