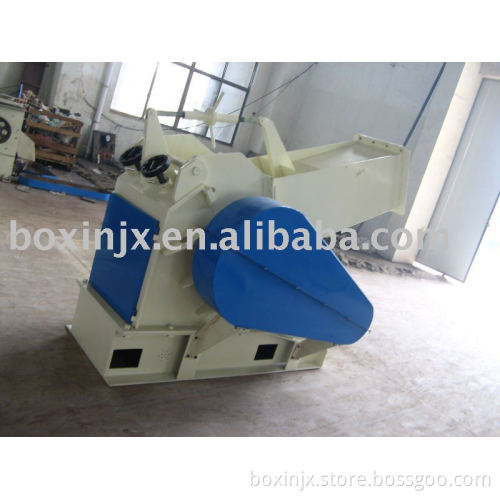

plastic pipe crusher

Specifications suitable for crushing all engineering plastic.

moving blade is dismountable

low noise&price

high quality

pipe crusher

Product Description Detailed Product Description( pipe crusher)
Features:
1) Specialized blades for crushing pipes (PP-R, PE, PVC)
2) Steel body and clamping blade prevent the machine from cracking
3) Stepped blades increase shearing strength and crushing efficiency
4) Movable screen is easily to assembly, disassemble and wash
5) Sound separation layer in the feeding door lowers operations noise levels

Item No.	SWP200	SWP210	SWP320	SWP360	SWP400
Diameter of Rotating Knife	200mm	210mm	320mm	360mm	400mm
No. of Rotating Knives(sets)	3	3	6/2	3	5
Speed of Rotating Knives(rpm)	870	500	650	650	500
No. of Steady Knives(sets)	2	2	2	2	2
Diameter of sieve plate	8mm	10mm	12mm	12mm	12mm
Capacity (kg/hr)	50-110	80-120	250-350	520-250	350-450
Power(KW)	4	4	11	11	15
Electric Power	380v50Hz
Size of filling door (mm)	240*350	250*230	500*280	520*250	800*380
Weight(kg)	300	320	1400	750	980
Meas. (mm)	1000*590*1090	800*600*1400	1613*1150*1910	1350*1040*1600	2500*1200*2000
