pp/pe film cleaning line

Specifications film cleaning line

1.used for PE,PP film crushing,washing,drying.

2.design based on customers' requirement.

Boxin Machine Is the professional manufacturer which has the most scale in PET bottles and PE/PE films recycling(contains washing, drying and pelletizing) machinery equipment.

We refer to oversea developed countries experience, while independently developing. Now changda is the first high-standard for the plastic recycling(contains washing, drying and pelletizing) product line. The waste plastic dealed by our washing equipment can reach high quality. It works automatically(output 500-1000 kilogram an hour), saving much labor force.

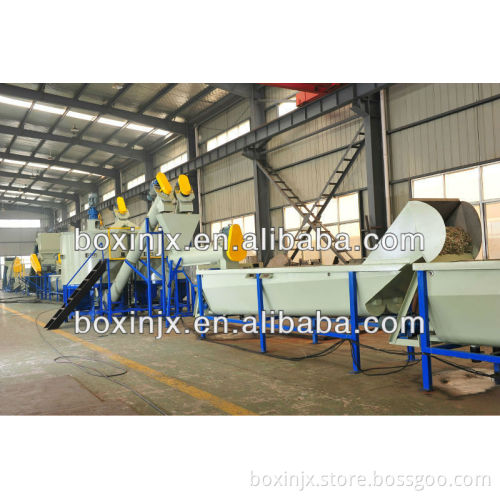

This line you are now looking at is mainly used for PP/PE waste film recycling and washing. After films clean, you can use them to pelletize.

We can design different pp/pe film recycling line for you according to your request:

1: There are different capacity can be supplied: 200kg/h, 300kg/h, 500kg/h.

2: You can choose different devices according to your material.

3: According to your country condition, you can choose full automatic line or semi-automatic line.

4: You can purchase separate device based on your own conditions.

5: We providing turn-key project for you. Design-product-installment-testing.

Features and application:

1) This whole production line is used to crush, wash, dewater and dry PP, PE Film.

2) It takes the advantages of simple structure, easy operation, high capacity, low energy consumption, safety, reliability, etc.

3) This whole production line is automatic controlling, structure arrangement compact, high production efficiency, nice cleanness.

4) Production capacity: 200-500kg/h.

5) After drying the water content can reach 5-8% (according to the thickness of film).

Number	Description	Technical parameters	Quantity
1	Belt Conveyor	1.Length: 4000mm    2. Width: 600mm 3. Material: Rubber 4. Conveying Capacity: 300Kg /h 5. Motor: 1.5KW	One set
2	Crusher with Water	1. Model:   PC700 2. Crush Capacity: 200Kg /h 3. Knife Material: Cr12MoV 4. Motor Power: 22KW 5. Feeder Throat Dimension: 700× 450mm 6. Knife Gyration Diameter:   Φ 360mm	One set
3	High speed friction washing machine	1) Motor power: 7.5 KW 2) Filtering method: Stainless Steel mesh 3) Process material: Stainless Steel 4) Principal axis diameter: 300mm 5) Principal axis rotate speed: 750r/min 6) Spraying mouth on top: 2 fleets, 8 mouths 7) Principal axis is through dynamic & static balance correction. 8) The equipment is with the material-feeding function.	One set
4	Film Rinse Tank	1. Stir Motor Power: 3KW 2. Effective Washing Length: 6000mm 3. Tank Material: Stainless Steel 4. Residue Exclude Method: By Screw	One set
5	Screw Conveyer	1. Motor Power: 1.5KW 2. Conveying Capacity: ≥ 200kg /h 3. With Water-drainage Function. 4. Process Material: Stainless Steel	One set
6	Film Dewatering Machine	1. Motor Power: 37KW 2. Rotary Speed: 1500rpm 3. Process Material: Stainless Steel 4. Main Shaft: Through dynamic and static balance treatment. 5. Water -drainage Method:  Downwards.	One set
7	Drying System	1. Fan Motor Power: 5.5KW 2.Heating Power:28KW,Electricity Heating Pipe, total 3 Groups 3. Pipe Tract Material: Stainless Steel 4. Pipe Tract Diameter: Φ 159mm 5. Pipe Tract Type: U Type	One set
8	Material Store System/ hopper	1. Cubage: 1 M ³ 2. Process Material: Stainless Steel 3. Material Lay-off Control: Plate Valve	One set
9	Electricity Control	1. Contactor is brandsiemens	One set
10	Production time	45 days
11	Guarantee period	One year
